UKF 215 RICH

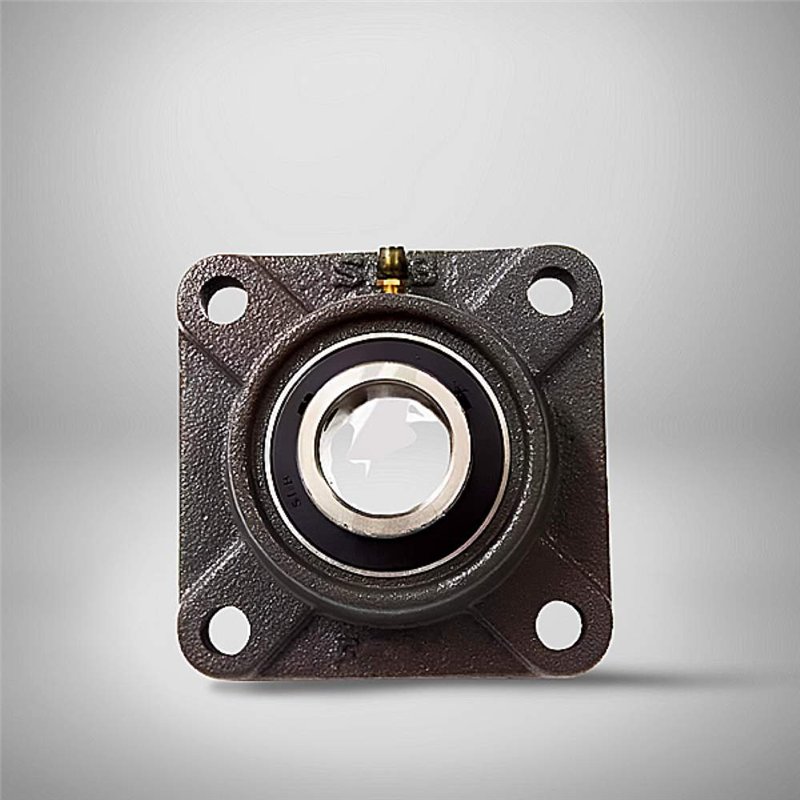

UKF215 RICH Cast Iron Bearing Unit with Adapter Sleeve - 65 mm Bore

The UKF215 RICH is a robust cast iron bearing unit with an adapter sleeve, meticulously manufactured by RICH in China. This unit is designed to provide reliable support for rotating shafts, particularly in applications where initial alignment might be challenging or where shafts are subject to slight inaccuracies. The adapter sleeve mounting allows for easy installation and removal without damaging the shaft.

The bearing unit is engineered for shafts with a 65 mm bore diameter. While specific outer diameter and width for the bearing itself are not provided, the overall dimensions of the unit are substantial, indicating its capacity for demanding operations.

The unit features a durable steel cage within the bearing, ensuring robust performance and reliable guidance of the rolling elements. With a substantial weight of 6.896 kg, this unit from RICH signifies its solid construction and ability to withstand heavy loads and vibrations.

Key dimensional parameters provided for the housing include:

• A1: 22 mm
• A2: 69.5 mm
• A: 56 mm
• J: 159 mm (distance between mounting bolt holes)
• L: 200 mm (overall length of the unit)
• N: 19 mm (mounting bolt hole size)

This UKF215 RICH bearing unit is ideally suited for various industrial applications, including agricultural machinery, conveyor systems, construction equipment, and other heavy-duty machinery where stable and easily mountable shaft support is essential.

Key Specifications:

• Type: Cast Iron Bearing Unit with Adapter Sleeve
• Brand: RICH
• Model: UKF215 RICH
• Bore Diameter (d): 65 mm
• Weight: 6.896 kg
• Cage Material: Steel
• Dimensions:
  • A1: 22 mm
  • A2: 69.5 mm
  • A: 56 mm
  • J: 159 mm
  • L: 200 mm
  • N: 19 mm
• Country of Origin: China

Key Advantages:

• Robust Cast Iron Housing: Provides excellent strength and durability for demanding environments.
• Adapter Sleeve Mounting: Facilitates easy and secure installation, accommodating shafts with normal manufacturing tolerances, and simplifying maintenance.
• High Load Capacity: Designed to support significant radial and axial loads.
• Reliable Performance: Features a strong steel cage for consistent operation.
• Versatile Applications: Suitable for a wide range of industrial machinery.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
