SB203 RICH 12x40x22

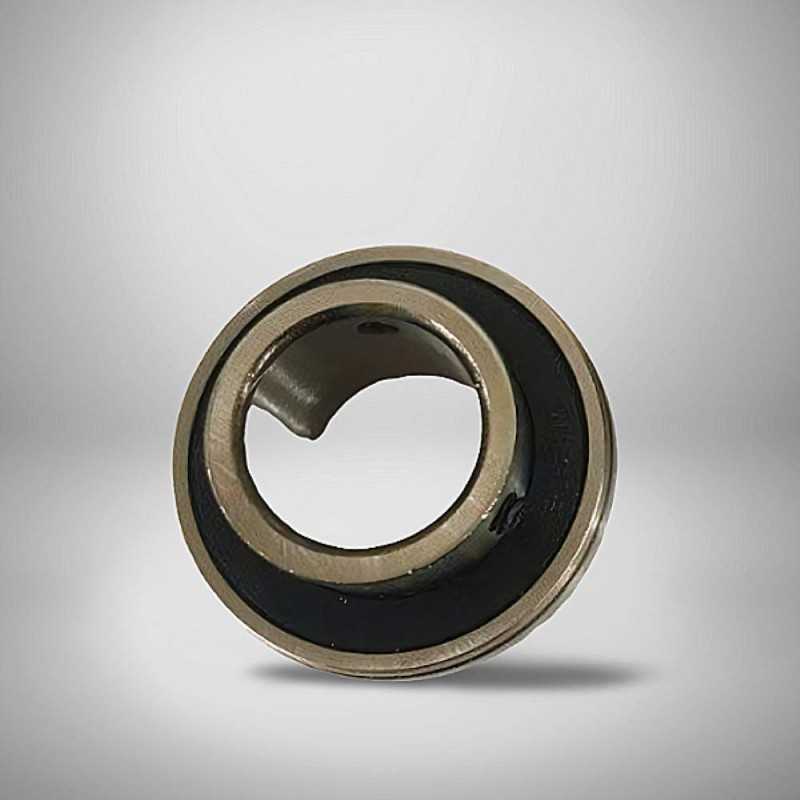

SB203 RICH – Insert Ball Bearing – 17 x 40 x 22 mm

Technical Specifications:

• Type: Insert ball bearing
• Brand: RICH
• Model Designation: SB203
• Inner Diameter (d): 17 mm
• Outer Diameter (D): 40 mm
• Width (B): 22 mm
• Inner Ring Width: 27 mm
• Outer Ring Width (C): 12 mm
• Bore Configuration: Cylindrical bore
• Radial Internal Clearance: CN (Normal clearance)
• Outer Ring Profile: Spherical (rounded) outer ring
• Weight: 0.09 kg
• Country of Origin: China

Construction Features:

• Component Design: The assembly features a specialized external profile featuring a rounded outer surface engineered to facilitate self-alignment within compatible housings and counteract mounting variations.
• Internal Configuration: The single row internal mechanical layout operates within normal radial clearance parameters to deliver stabilized rotational support under standard conditions.
• Dimensional Profile: The structural framework includes a 17 mm inner bore, a 40 mm outer diameter, an overall width configuration of 22 mm, an extended inner ring width of 27 mm, and a narrow outer ring width of 12 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
