UCT 206 RICH UCT206 RICH
search
  • UCT 206 RICH UCT206 RICH

UCT 206 RICH

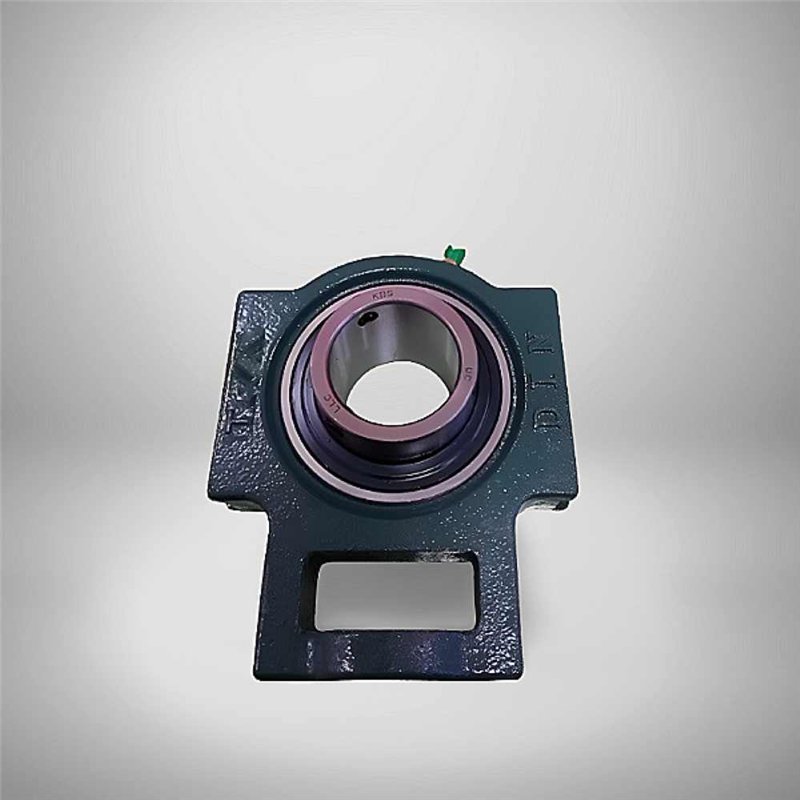

The UCT206 RICH is a cast iron bearing unit with a 30mm bore, C3 clearance, and advanced sealing, built for robust support.

RICH
UCT206
€5.96
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

UCT206 RICH Cast Iron Bearing Unit - 30 mm Bore

Technical Specifications:

  • Type: Cast Iron Bearing Unit
  • Brand: RICH
  • Model: UCT206 RICH
  • Inner Diameter (d): 30 mm
  • Weight: 1.22 kg
  • Cage: Steel
  • Clearance: C3 - Greater than normal
  • Dimension A: 28 mm
  • Dimension A1: 12 mm
  • Dimension F: 70 mm
  • Dimension F2: 113 mm
  • Dimension L: 102 mm
  • Sealing: Double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
  • Country of Origin: China

The UCT206 RICH is a high-quality cast iron bearing unit, designed for reliable and efficient performance in various industrial applications. This robust unit features a 30 mm bore and is constructed with a durable steel cage and cast iron housing to withstand challenging operating conditions. It operates with C3 clearance (greater than normal), making it ideal for applications with high operating temperatures or those requiring increased internal play.

The double-sided lip seals, covered with steel washers and an outer flinger shield, offer superior protection against contaminants. With precise dimensions, including a length (L) of 102 mm and a width (F) of 70 mm, this unit provides a secure and stable mounting solution. Weighing 1.22 kg, it delivers a combination of strength and functionality. Manufactured by RICH in China, the UCT206 is a dependable choice for supporting rotating shafts, ensuring long-lasting and consistent performance.

Key Performance Advantages:

  • Robust Construction: Made from durable cast iron with a steel cage, providing high strength and resistance.
  • Enhanced Sealing: Advanced sealing system provides superior protection against contaminants.
  • C3 Clearance: Ideal for applications with high temperatures and demanding operational conditions.
  • Secure Mounting: Designed for stable and secure attachment, ensuring reliable support for shafts.
  • RICH Quality: Produced in China by RICH, guaranteeing high performance and consistent reliability.

Data sheet

Inner Diameter
30
Weight
1,22
