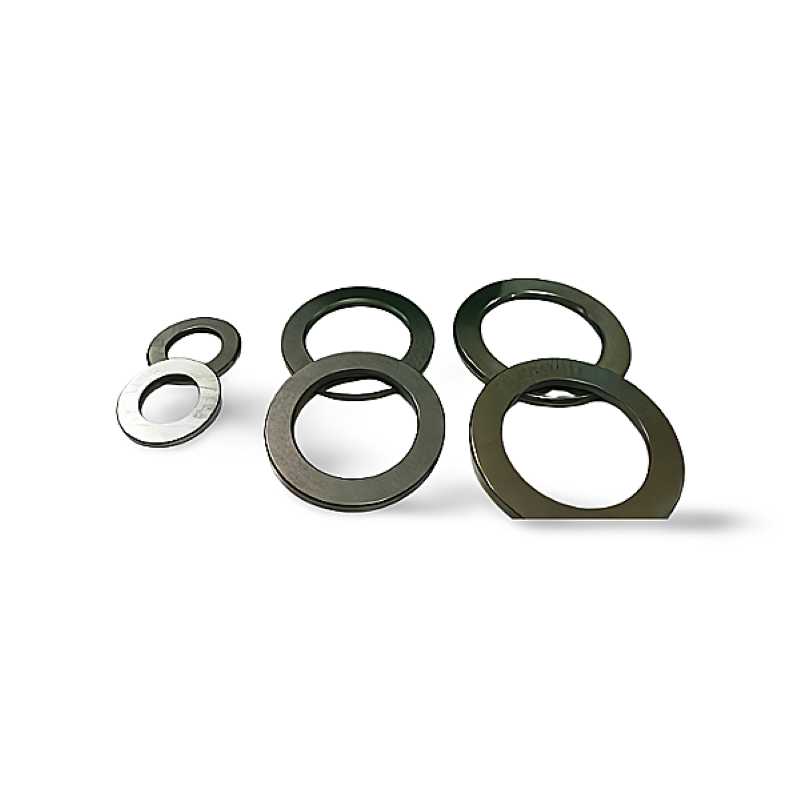

LS90120 RICH Axial Bearing Washer - 90 x 120 x 6.5 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS90120
  • Brand: RICH
  • Bore Diameter (d): 90 mm
  • Outer Diameter (D): 120 mm
  • Thickness (H): 6.5 mm
  • Weight: 0.24 kg
  • Country of Origin: China

The LS90120 RICH is a heavy-duty axial bearing washer precision-ground to provide an optimal, hardened raceway surface. This component is essential for installations utilizing axial (thrust) needle roller and cage assemblies where the adjoining shaft or housing surfaces are not hardened or finished to the required specifications. With large dimensions of 90 mm bore, 120 mm outer diameter, and a robust 6.5 mm thickness, the LS90120 RICH is built to facilitate high axial load capacity while minimizing wear and friction. This washer is a crucial element for ensuring the reliable and extended service life of the corresponding thrust bearing in heavy machinery.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • High Axial Load Capacity: Supports smooth operation under significant thrust forces.
  • Robust Design: Large dimensions and thickness ensure stability in heavy-duty applications.
  • Versatility: Can be used as either a shaft or housing washer for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
90
Outer Diameter
120
Width
6,5
Weight
0,24
Category
Axial Bearing Washer
