6307 2Z NR RICH 35x80x21

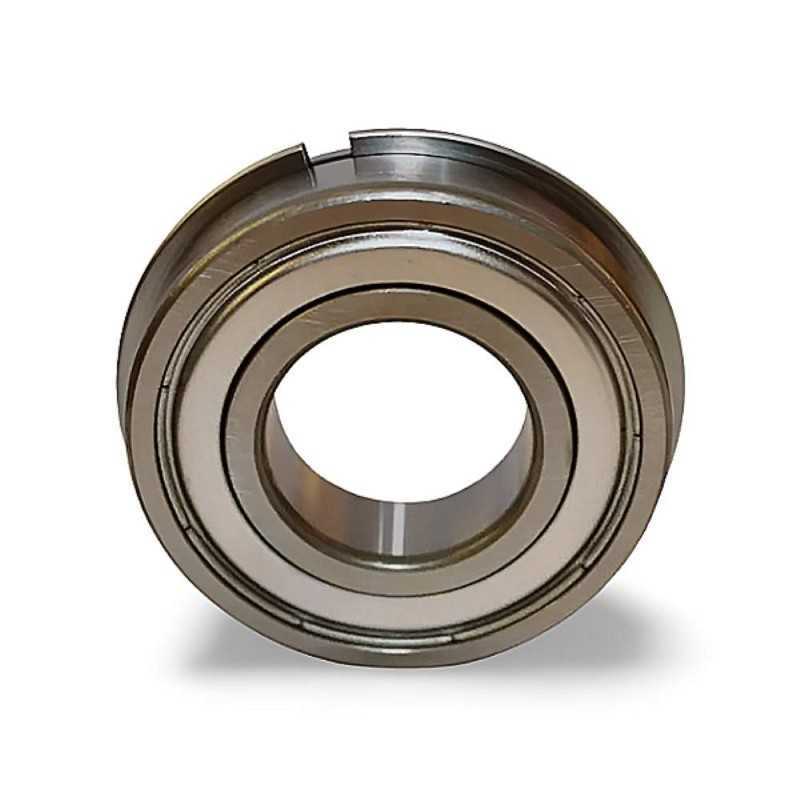

6307.2Z.NR RICH Single Row Deep Groove Ball Bearing 35 x 80 x 21 mm - Shielded, Grooved, Normal Clearance

The 6307.2Z.NR RICH Single Row Deep Groove Ball Bearing is a high-performance component measuring 35 x 80 x 21 mm. This bearing is expertly designed for a wide range of applications requiring smooth and efficient rotational motion with good radial and axial load capacity. Manufactured in China by RICH, it features a robust steel cage and double-sided non-contact metal shields (2Z), providing effective protection against dust and debris while allowing for higher rotational speeds.

A key feature of this deep groove ball bearing 6307.2Z.NR is the presence of a groove with a snap ring (NR) on the outer ring. This allows for axial location of the bearing in the housing, simplifying mounting and assembly, and reducing the need for additional components. It has a 35 mm inner diameter, 80 mm outer diameter, and a 21 mm width. The CN (normal) internal clearance makes it suitable for most general applications.

Weighing just 0.47 kg, this 6307.2Z.NR RICH bearing provides a reliable and cost-effective solution for ensuring consistent performance and long-term durability in challenging operational conditions, especially where shielding and axial retention are crucial.

Key Specifications:

• Type: Single Row Deep Groove Ball Bearing
• Model: 6307.2Z.NR
• Application: General industrial use, machinery where contamination and axial retention are concerns
• Dimensions: 35 mm inner diameter x 80 mm outer diameter x 21 mm width
• Sealing: Double-sided non-contact shields (2Z)
• Outer Ring Feature: Groove with a snap ring (NR)
• Clearance: CN - Normal Clearance
• Cage Material: Steel
• Weight: 0.47 kg
• Country of Origin: China
• Brand: RICH

Key Advantages:

• Effective Contamination Protection (2Z): Double-sided non-contact metal shields provide good protection against dust and minor debris, extending bearing life.
• Axial Location (NR): Outer ring groove with snap ring simplifies mounting and provides reliable axial positioning.
• Versatile Performance: Suitable for applications with both radial and moderate axial loads.
• Normal Clearance (CN): Ideal for standard operating conditions.
• Durable Steel Cage: Ensures robust performance and extended reliability.
• Cost-Effective Reliability: Provides trusted RICH quality for consistent performance.
