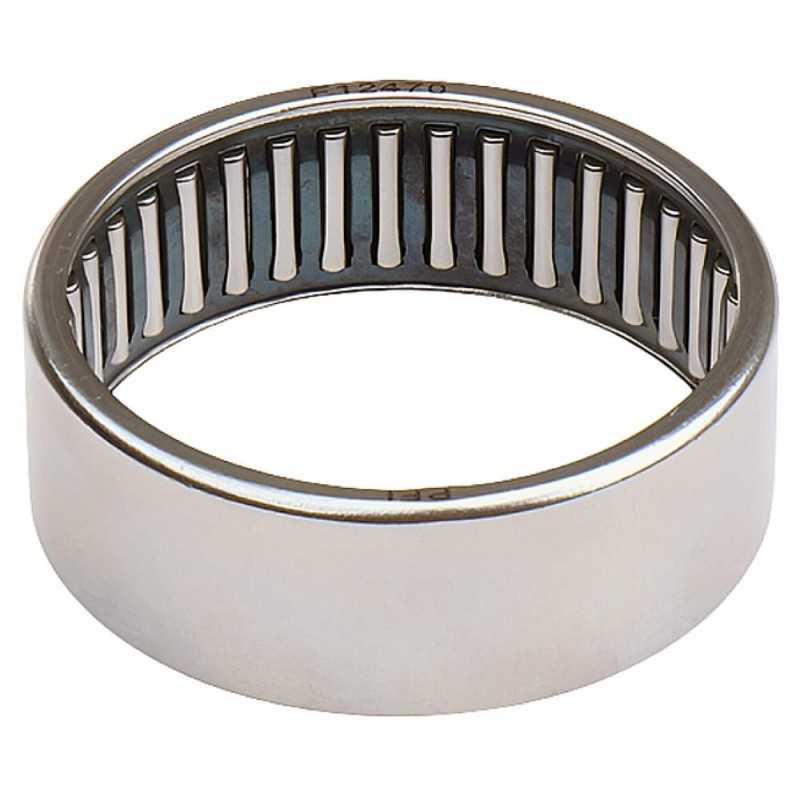

Needle Roller Bearing Without Inner Ring B-148 RICH - 22.22 x 28.58 x 12.7 mm

The B-148 RICH is a robust needle roller bearing without an inner ring, designed for applications where the shaft can be hardened and precision-ground to serve as the inner raceway. This design offers a compact radial cross-section, making it highly suitable for installations with limited space. This particular bearing operates without a cage, utilizing a full complement of needle rollers to maximize load carrying capacity. It is exceptionally effective in oscillating movements and situations requiring high radial load management within a confined envelope. Its dimensions are a 22.22 mm bore diameter, 28.58 mm outer diameter, and 12.7 mm width. It has a weight of 0.025 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing Without Inner Ring
  • Dimensions: 22.22 mm bore diameter x 28.58 mm outer diameter x 12.7 mm width
  • Weight: 0.025 kg
  • Cage: None (Full Complement)
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Extremely compact radial cross-section
  • High load-carrying capacity due to full complement design
  • Ideal when the shaft can act as the inner raceway
  • Suitable for oscillating movements and high radial loads
  • Economical solution for space-constrained designs

Data sheet

Inner Diameter
22,22
Outer Diameter
28,58
Width
12,7
Weight
0,025
Category
Needle Roller Bearing Without Inner Ring
