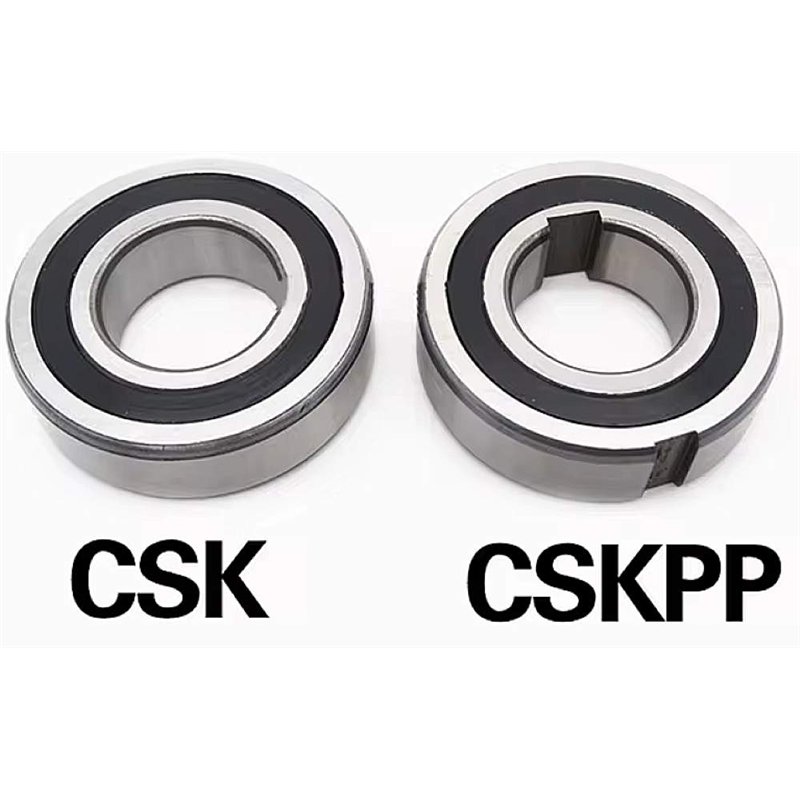

CSK 12 PP RICH | Versatile Ball Bearing Freewheel Clutch 12 x 32 x 10 mm
Technical Specifications:
- Product Type: Ball Bearing Freewheel Clutch (One-Way Bearing)
- Model: CSK 12 PP RICH
- Brand: RICH
- Dimensions: 12 mm ID x 32 mm OD x 10 mm W
- Keyway Feature: PP (Keyways on both inner and outer races)
- Weight: 0.05 kg
- Country of Origin: China
The CSK 12 PP RICH is a versatile ball bearing freewheel clutch designed for high-precision unidirectional motion. Measuring 12 x 32 x 10 mm, this specialized one-way bearing ensures torque transmission in one direction while allowing free rotation in the opposite. The PP designation confirms integrated keyways on both races, ensuring a secure mechanical lock and preventing slippage under high torque.
Built with a dual-function design, it serves as both a standard ball bearing and a backstop clutch. This compact 0.05 kg unit is optimized for space-constrained industrial systems, agricultural machinery, and automated drives. Its robust internal sprag mechanism provides instant engagement and smooth freewheeling, enhancing system safety and operational efficiency.
Key Advantages:
- Double Keyway Security: PP design ensures a positive drive connection on both the shaft and housing.
- Integrated Ball Bearing: Provides radial load support and precise alignment in a single compact unit.
- Instant Backstop Action: Reliable sprag mechanism prevents reverse rotation in critical machinery.
- Maintenance-Free: Factory-greased and ready for immediate installation in diverse environments.
Transparency Note: Manufactured under the RICH brand. All technical data is provided for identification and compatibility purposes only.
Data sheet
Inner Diameter
12
Outer Diameter
32
Width
10
Weight
0,05
Category
Ball Bearing Freewheel Clutch
