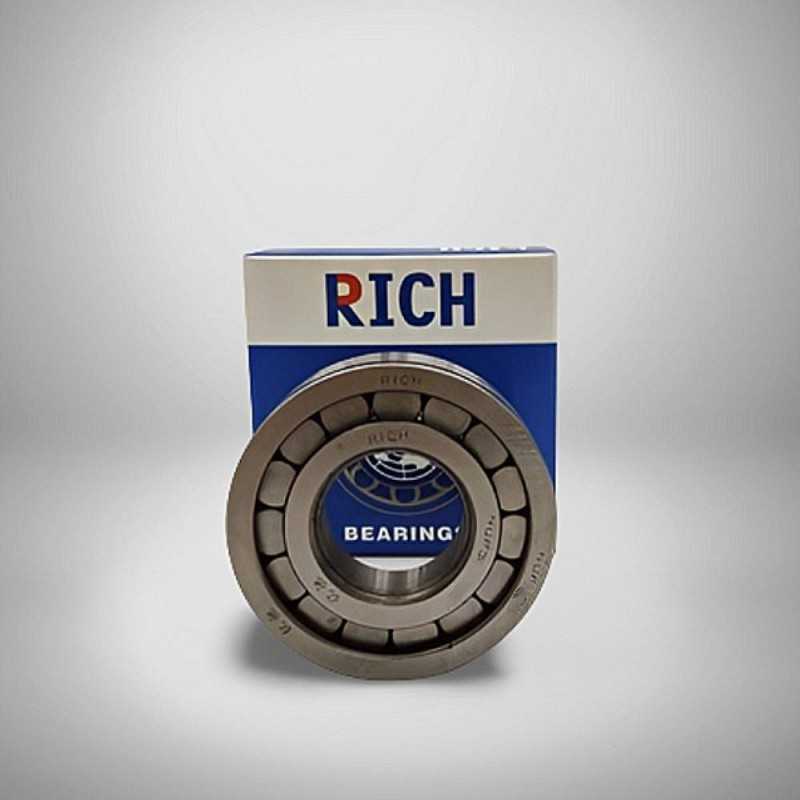

NUP 2204 RICH Single Row Cylindrical Roller Bearing - 20 x 47 x 18 mm

The NUP 2204 RICH is a reinforced single row cylindrical roller bearing designed for applications demanding high radial load capacity and the ability to accommodate axial displacement in one direction, along with supporting axial loads in that direction. This bearing has key dimensions of 20 mm inner diameter, 47 mm outer diameter, and a width of 18 mm. It features a steel cage and weighs 0.16 kg. The NUP designation signifies that the outer ring has two fixed ribs, while the inner ring has one fixed rib and one loose rib. This design allows for axial movement of the shaft relative to the housing within specific limits. This particular RICH bearing features a reinforced execution, enhancing its durability and load-carrying capabilities. It is made in China.

Key Specifications:

  • Bearing Type: Single Row Cylindrical Roller Bearing
  • Model:** NUP 2204 RICH
  • Inner Diameter (d):** 20 mm
  • Outer Diameter (D):** 47 mm
  • Width (B):** 18 mm
  • Cage Material:** Steel
  • Weight:** 0.16 kg
  • Country of Origin:** China
  • Reinforced Execution:** Yes

Key Features:

  • Cylindrical Roller Design:** Provides very high radial load capacity.
  • NUP Design:** Outer ring with two fixed ribs, inner ring with one fixed and one loose rib, enabling axial displacement in one direction and axial load support.
  • Reinforced Execution:** Offers increased durability and enhanced load-carrying capacity.
  • Steel Cage:** Ensures excellent strength and precise roller guidance.
  • Separable Components:** The inner ring assembly and outer ring can be mounted independently, simplifying installation and maintenance.
  • Versatile Application:** Ideally suited for demanding applications in machine tools, gearboxes, and various other industrial machinery where high radial loads and axial movement are present.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
18
Roller Rows
Single Row
Category
Single Row Cylindrical Roller Bearing
