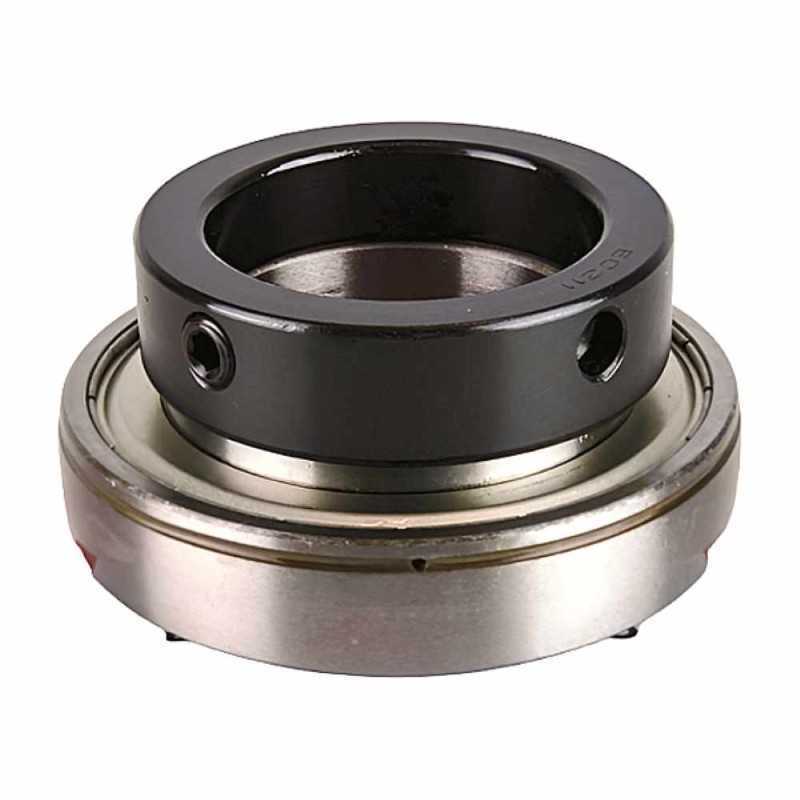

SA205 RICH Insert Ball Bearing - 25 x 52 x 30.9 mm

OE References:

  • INS-SXV-25M DODGE
  • SXV-25M DODGE

Technical Specifications:

  • Brand: RICH
  • Type: Insert Ball Bearing
  • Dimensions: 25 x 52 x 30.9 mm
  • Inner Ring Width: 23.8 mm
  • Outer Ring Width (C): 15 mm
  • Weight: 0.189 kg
  • Sealing: Double-sided rubber contact seals
  • Outer Ring Profile: Spherical
  • Country of Origin: China

The SA205 RICH is a robust insert ball bearing engineered for demanding industrial and agricultural applications. It is designed with a spherical (rounded) outer ring that allows it to compensate for initial static misalignment between the shaft and the housing, which is a common challenge in machinery. This bearing is equipped with double-sided rubber contact seals that provide effective protection against the ingress of dust, dirt, and moisture. This sealing system helps to retain the internal lubricant and ensures the bearing's reliable performance and extended service life, as confirmed by its cross-references to equipment from Dodge.

Key Performance Advantages:

  • Misalignment Compensation: The spherical outer ring profile accommodates initial static misalignment, reducing stress on the bearing and shaft.
  • Effective Contamination Protection: Double-sided contact seals efficiently shield the bearing from harsh environmental elements.
  • Durability: Built to withstand demanding conditions, providing reliable and long-lasting performance.
  • Simplified Assembly: The bearing's design simplifies mounting and ensures a secure fit in compatible housings.

Data sheet

Inner Diameter
25
Outer Diameter
52
Width
30,9
Weight
0,189
Ball Rows
Single Row
Clearance
CN (Normal)
