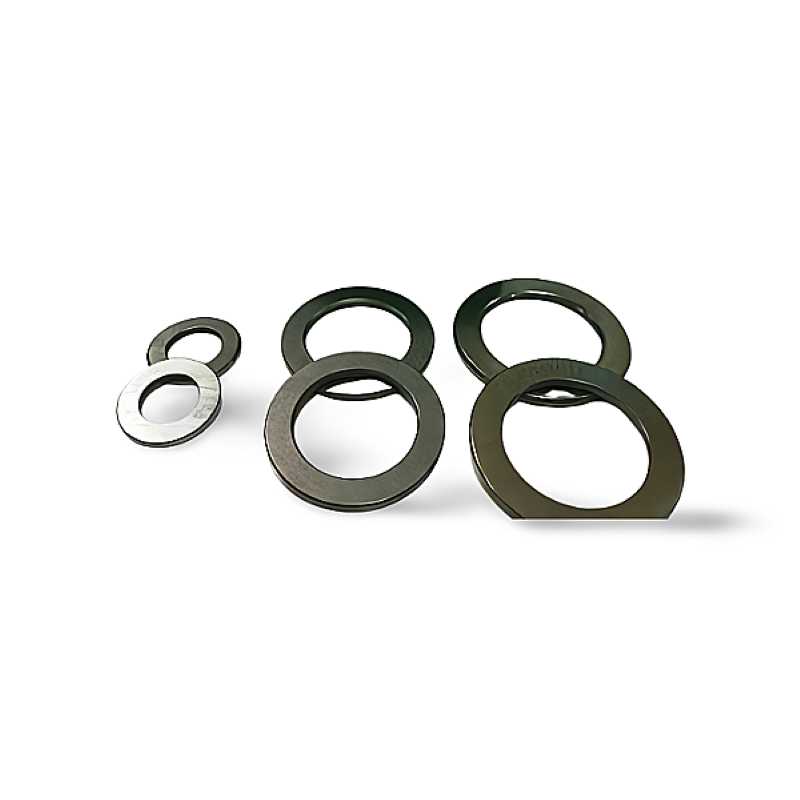

LS 85110 RICH Axial Bearing Washer - 85 x 110 x 5.75 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 85110
  • Brand: RICH
  • Bore Diameter (d): 85 mm
  • Outer Diameter (D): 110 mm
  • Thickness (H): 5.75 mm
  • Weight: 0.158 kg
  • Country of Origin: China

The LS 85110 RICH is a large, precision-engineered axial bearing washer designed to provide a hard, ground raceway surface. This washer is crucial for applications that utilize axial (thrust) needle roller and cage assemblies, particularly when the adjoining machine components are not suitable to serve as the bearing raceway. With substantial dimensions of 85 mm bore, 110 mm outer diameter, and a robust 5.75 mm thickness, the LS 85110 RICH is built to facilitate high axial load capacity and minimize friction. This component ensures the smooth, reliable, and extended service life of the corresponding needle roller thrust bearing in heavy-duty thrust applications.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • High Axial Load Capacity: Supports smooth operation under significant thrust forces.
  • Robust Design: Large dimensions and thickness ensure stability in heavy-duty applications.
  • Versatility: Can be used as either a shaft or housing washer (AS or WS) for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
85
Outer Diameter
110
Width
5,75
Weight
0,158
Category
Axial Bearing Washer
