KRVE52-PP-A RICH 20x52x24 KRVE52PP RICH
search
  • KRVE52-PP-A RICH 20x52x24 KRVE52PP RICH
  • KRVE52-PP-A RICH 20x52x24 KRVE52PP RICH

KRVE52-PP-A RICH 20x52x24

RICH
KRVE52PP
€18.39
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

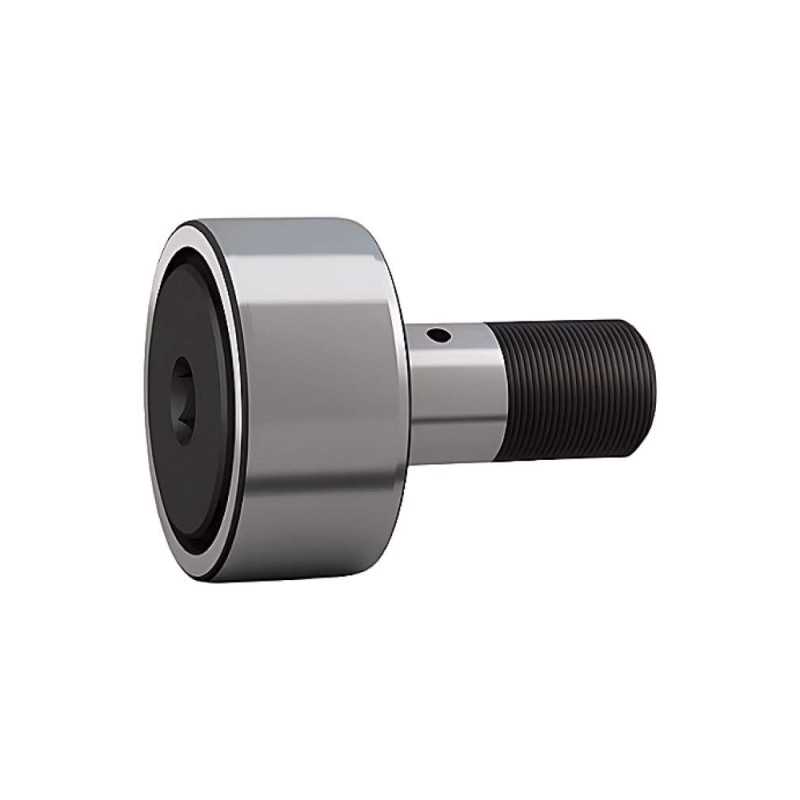

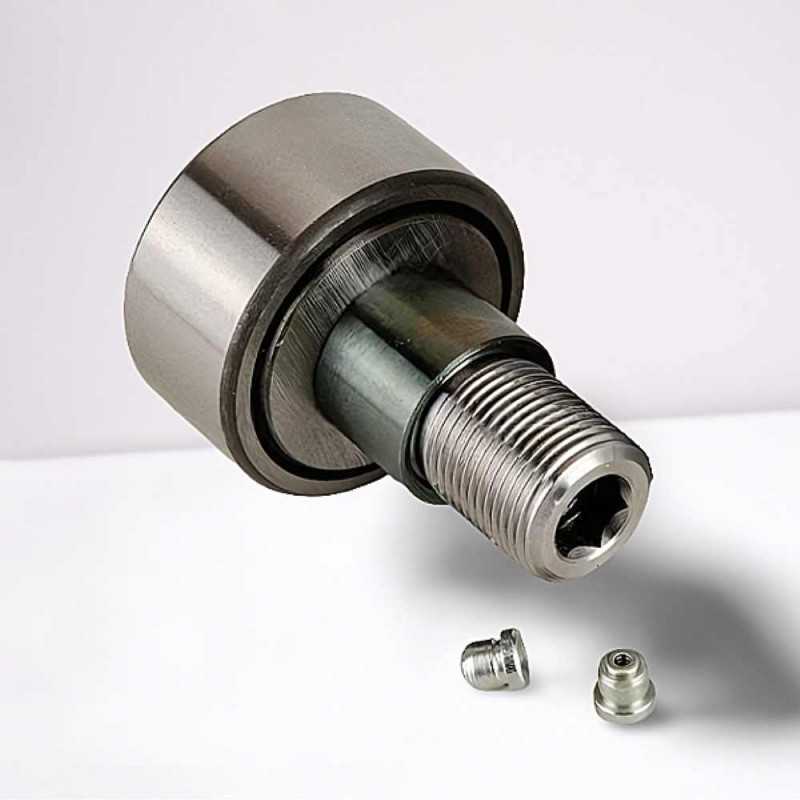

KRVE52.PP RICH Cam Follower - Eccentric Stud - 24 x 52 x 24 mm Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Eccentric Stud
  • Model Designation: KRVE52.PP
  • Brand: RICH
  • Outer Diameter (D): 52 mm
  • Width over rollers/raceways (B): 24 mm
  • Stud Diameter (d1): 24 mm
  • Overall Length (B1): 66 mm
  • Thread Size: M20x1.5
  • Outer Ring: Rounded (Crowned)
  • Sealing: Double-sided rubber, contact (PP)
  • Cage Material: Steel
  • Weight: 0.46 kg
  • Country of Manufacture: China

The KRVE52.PP RICH cam follower with an eccentric stud, meticulously manufactured by RICH in China, is engineered for demanding applications requiring precise adjustment of the radial position of the outer ring. This robust cam follower features a 24 mm stud diameter with an M20x1.5 fine thread, a 52 mm outer diameter, and a 24 mm width over the rollers/raceways, with an overall bearing length of 66 mm. Its rounded (crowned) outer ring minimizes edge stresses and ensures smooth running even with slight misalignment. Equipped with double-sided contact rubber seals (PP) to protect against contaminants and a durable steel cage, this RICH cam follower delivers highly adjustable and reliable performance in automation systems, indexing mechanisms, and conveying equipment. Weighing 0.46 kg, it is an ideal solution for systems requiring fine-tuning and high load support.

Key Performance Advantages:

  • Eccentric Stud Design: Allows for precise radial adjustment of the outer ring, enabling fine-tuning of clearance or preloading.
  • Rounded Outer Ring: Minimizes edge stress and provides smoother operation, especially under slight misalignment.
  • Double-Sided Contact Seals (PP): Offers effective protection against dust, dirt, and moisture, enhancing durability in harsh environments.
  • High Load Capacity: Designed to withstand significant radial and shock loads for reliable operation.
  • Durable Steel Cage: Contributes to the cam follower's strength and stable performance.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing dependable performance.
