63/28 NR C3 RICH 28x68x18
Rating:
(0)
EUR €
- EUR €
- USD $

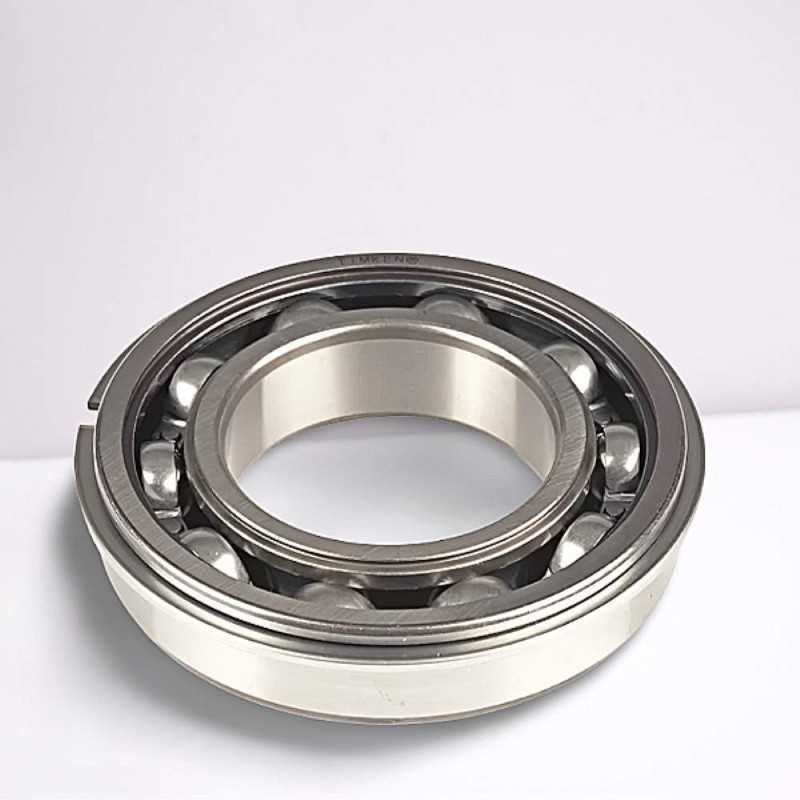

63/28.NRC3 RICH Single Row Deep Groove Ball Bearing with Snap Ring Groove and C3 Clearance - 28 x 68 x 18 mm, Open Type
The 63/28.NRC3 RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation, and features a groove on the outer ring for a snap ring. It has key dimensions of 28 mm inner diameter, 68 mm outer diameter, and a width of 18 mm. This bearing weighs approximately 0.32 kg. It features a steel cage and has C3 clearance, which is greater than normal clearance. It is made in China and does not have any seals. The NR designation indicates a groove on the outer ring, typically used with a snap ring for axial location of the bearing. Single row deep groove ball bearings can accommodate radial and axial loads in both directions. The C3 clearance is suitable for applications where thermal expansion or high speeds may occur.
Key Specifications:
- Type:** Single Row Deep Groove Ball Bearing with Snap Ring Groove
- Model:** 63/28.NRC3 RICH
- Inner Diameter (d): 28 mm
- Outer Diameter (D): 68 mm
- Width (B): 18 mm
- Cage Material:** Steel
- Clearance:** C3 (Greater than Normal)
- Sealing:** None (Open)
- Groove on Outer Ring:** Yes, with a snap ring
- Weight:** 0.32 kg
- Country of Origin:** China
Key Features:
- Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
- Snap Ring Groove (NR): Allows for easy axial location and mounting.
- Steel Cage:** Offers high strength and durability.
- Open Type (No Seals): Allows for relubrication and high-speed operation.
- C3 Clearance:** Provides a greater internal clearance, suitable for specific operating conditions.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
28
Outer Diameter
68
Width
18
Weight
0,32
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
