1204 RICH 20x47x14

RICH
1204
€1.67
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

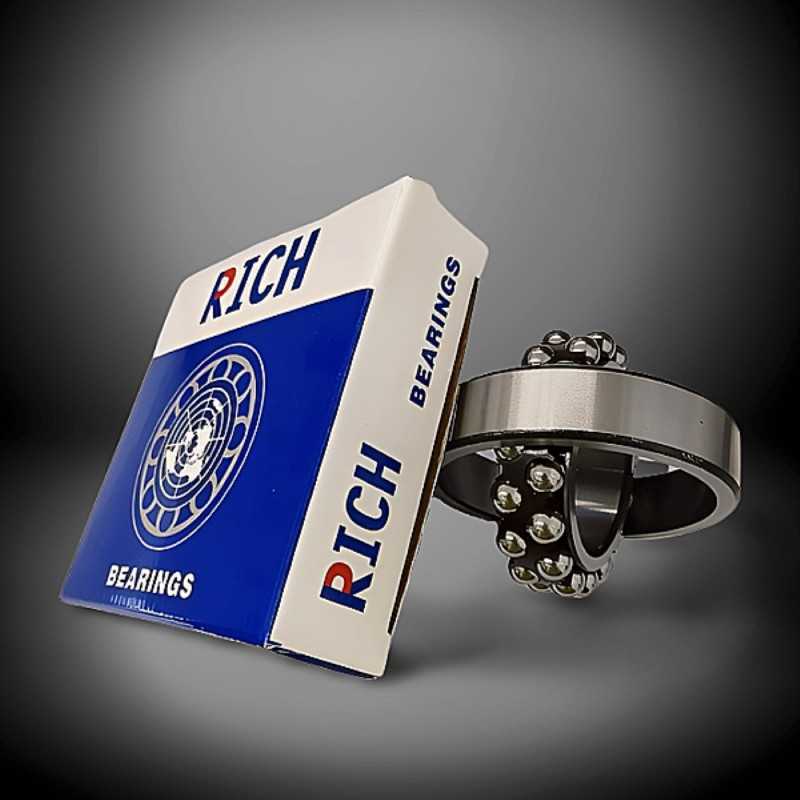

1204 RICH Self-Aligning Ball Bearing with Tapered Bore 1:12 - 20x47x14 mm

The 1204 RICH is a self-aligning ball bearing designed to accommodate angular misalignment between the shaft and housing, ensuring smooth operation even under challenging conditions. Featuring dimensions of 20 mm (inner diameter) x 47 mm (outer diameter) x 14 mm (width) and weighing approximately 0.121 kg, this bearing has a tapered bore with a 1:12 taper, facilitating mounting on a tapered shaft or adapter sleeve. It utilizes a durable steel cage for reliable performance. The CN (Normal) internal clearance is suitable for a wide range of operating temperatures and speeds. This bearing has no seals, allowing for higher rotational speeds and lubrication flexibility. Ideal for applications where shaft deflection or mounting errors may occur.

Key Specifications:

  • Bearing Type: Self-Aligning Ball Bearing
  • Model: 1204 RICH
  • Dimensions: 20 mm (Inner Diameter) x 47 mm (Outer Diameter) x 14 mm (Width)
  • Weight: Approximately 0.121 kg
  • Cage Material: Steel
  • Internal Clearance: CN (Normal)
  • Sealing: None
  • Bore Type: Tapered Bore (Taper 1:12)

Key Features:

  • Self-Aligning Capability: Accommodates angular misalignment, preventing premature wear.
  • Tapered Bore (1:12): Simplifies mounting and dismounting using tapered shafts or adapter sleeves.
  • Robust Steel Cage: Ensures reliable performance and long service life.
  • Standard Clearance (CN): Suitable for a wide range of operating conditions.
  • Unsealed Design: Allows for higher speeds and flexible lubrication options.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
14
Weight
0,11
Ball Rows
Double Row
Category
Self-Aligning Ball Bearing
