AS 6590 RICH 65x90x1 AS6590 RICH
search
  • AS 6590 RICH 65x90x1 AS6590 RICH

AS 6590 RICH 65x90x1

RICH
AS6590
€0.35
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

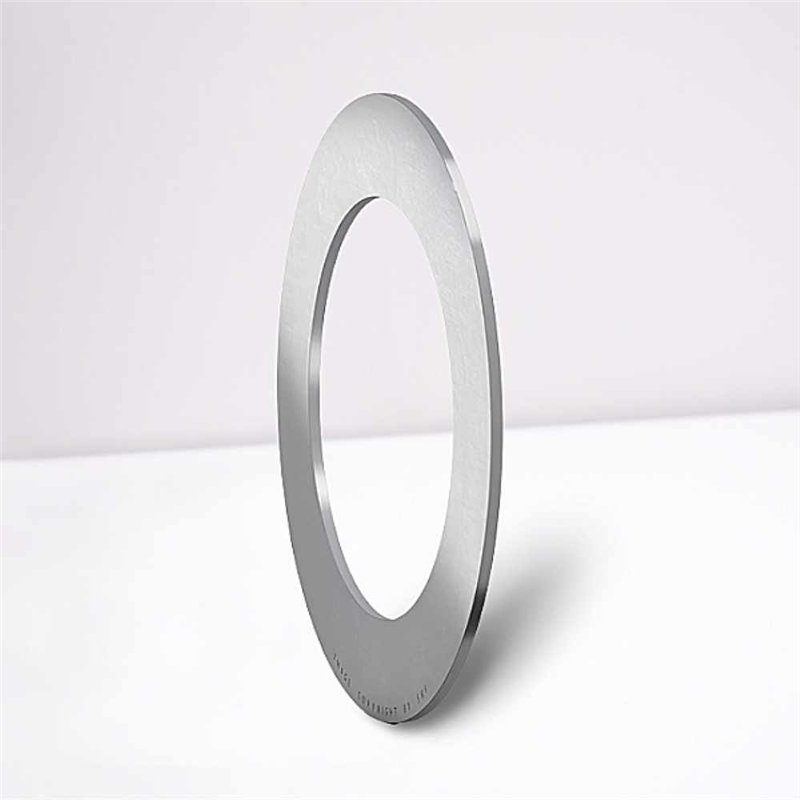

AS 6590 RICH Axial Bearing Washer - 65 x 90 x 1 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: AS 6590
  • Brand: RICH
  • Bore Diameter (d): 65 mm
  • Outer Diameter (D): 90 mm
  • Thickness (H): 1 mm
  • Weight: 0.022 kg
  • Country of Origin: China

The AS 6590 RICH is a precision-manufactured axial bearing washer, produced by RICH to serve as a high-quality raceway for large-diameter axial needle roller and cage assemblies (such as the AXK series). Its precise dimensions of 65 mm bore, 90 mm outer diameter, and a slim 1 mm thickness ensure minimal axial space occupation while providing a hardened, flat, and rigid running surface. This component is essential when adjacent machine components cannot be used as raceways due to required hardness or flatness, allowing for easy installation and removal. The washer is designed to support heavy axial loads and maintain stability in the bearing arrangement.

Key Performance Advantages:

  • High-Precision Raceways: Provides an optimal, hardened running surface for axial needle rollers.
  • Minimal Axial Space: Extremely thin profile (1 mm thickness) for use in compact bearing arrangements.
  • Large Diameter Support: Ideal for supporting heavy axial loads in larger machinery.
  • RICH Quality: Ensures high rigidity and stability for demanding applications.

Data sheet

Inner Diameter
65
Outer Diameter
90
Width
1
Weight
0,022
Category
Axial Bearing Washer
