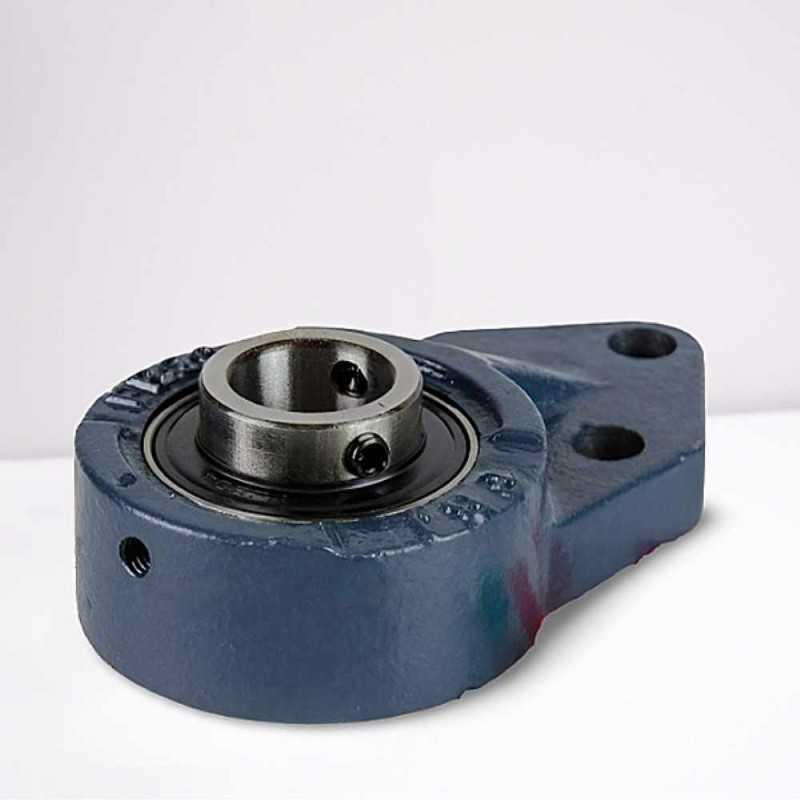

UCFB 202 RICH Cast Iron Flanged Bearing Unit - 15 mm Bore
Technical Specifications:
- Brand: RICH
- Type: Cast Iron Flanged Bearing Unit (Square)
- Model: UCFB 202
- Inner Diameter (d): 15 mm
- Housing Material: Cast Iron
- Overall Width (L): 62 mm
- Overall Height (H): 42 mm
- Bolt Hole Spacing (J): 32 mm
- Dimension (A): 25.5 mm
- Dimension (A1): 13 mm
- Dimension (H1): 27 mm
- Dimension (L2): 31 mm
- Dimension (N): 10 mm
- Dimension (F2): 110 mm
- Weight: 0.556 kg
- Country of Origin: China
The UCFB 202 RICH is a highly durable Cast Iron Flanged Bearing Unit manufactured by RICH. This unit features a rigid, square cast iron housing that ensures stable operation and simplified mounting onto machine side walls or frames, making it ideal for robust industrial applications.
Designed to accommodate a 15 mm shaft, the UCFB 202 RICH delivers excellent performance in conveyor systems, agricultural equipment, and general industrial machinery where strong support is required. The heavy-duty cast iron construction provides superior vibration damping and structural integrity, resulting in a reliable, long-lasting solution for power transmission. Its compact design (62 x 42 mm) and precision engineering make it easy to align and install in tight spaces.
Key Performance Advantages:
- Robust Construction: Heavy-duty cast iron housing provides superior strength and vibration damping.
- Simplified Mounting: Square flanged design allows for easy, secure installation on vertical or horizontal surfaces.
- Shaft Compatibility: Precision-engineered for a 15 mm shaft diameter (UC 202 insert).
- Industrial Reliability: Durable solution ideal for demanding applications like conveyors and machinery.
Data sheet
Inner Diameter
15
Weight
0,556
