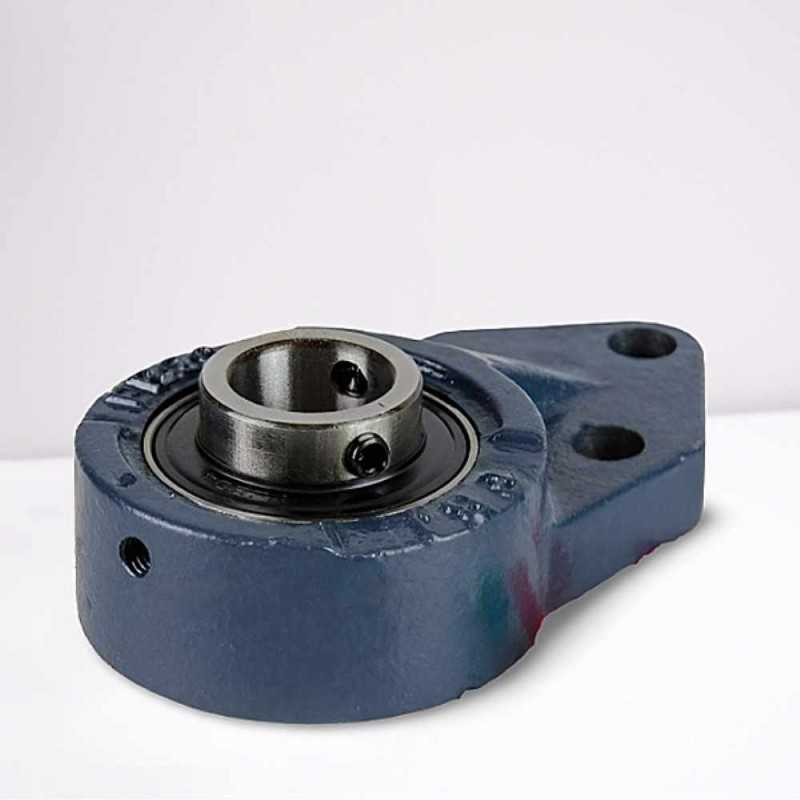

UCFB 203 RICH Cast Iron Flanged Bearing Unit - 17 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Cast Iron Flanged Bearing Unit (Square)
  • Model: UCFB 203
  • Inner Diameter (d): 17 mm
  • Housing Material: Cast Iron
  • Overall Width (L): 62 mm
  • Overall Height (H): 42 mm
  • Bolt Hole Spacing (J): 32 mm
  • Dimension (A): 25.5 mm
  • Dimension (A1): 13 mm
  • Dimension (H1): 27 mm
  • Dimension (L2): 31 mm
  • Dimension (N): 10 mm
  • Dimension (F2): 110 mm
  • Weight: 0.59 kg
  • Country of Origin: China

The UCFB 203 RICH is a heavy-duty Cast Iron Flanged Bearing Unit manufactured by RICH. This unit features a rigid, square cast iron housing that ensures stable operation and simplified four-bolt mounting onto machine side frames or walls.

Designed to accommodate a 17 mm shaft, the UCFB 203 RICH delivers reliable performance in robust power transmission applications such as conveyor systems and agricultural equipment. The durable cast iron construction provides superior structural integrity and effective vibration damping, resulting in a long-lasting industrial solution. Its compact dimensions (62 x 42 mm) and precision engineering make it a robust yet easy-to-install component.

Key Performance Advantages:

  • Robust Construction: Heavy-duty cast iron housing provides superior strength and vibration damping.
  • Simplified Mounting: Square flanged design allows for easy, secure four-bolt installation on flat surfaces.
  • Shaft Compatibility: Precision-engineered for a 17 mm shaft diameter (UC 203 insert).
  • Industrial Reliability: Durable solution ideal for demanding applications like conveyors and machinery.

Data sheet

Inner Diameter
17
Weight
0,59
