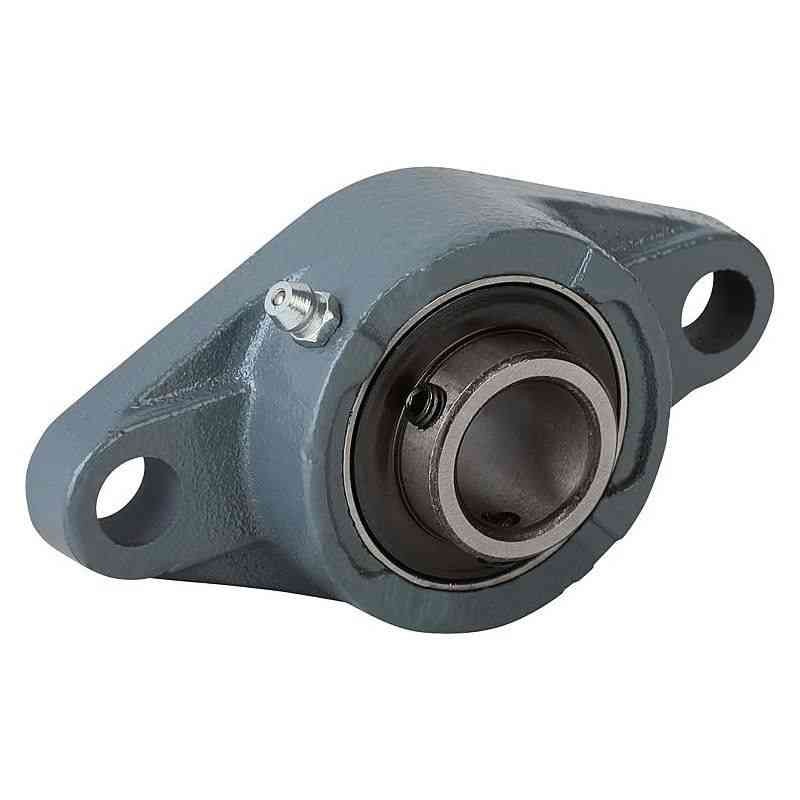

UCFL203 RICH Cast Iron Flanged Bearing Unit - 17 mm Bore

Technical Specifications:

  • Bearing Type: Cast Iron Bearing Unit
  • Model Designation: UCFL203
  • Brand: RICH
  • Dimensions: 17 mm bore
  • Inner Diameter (d): 17 mm
  • L (Overall Length): 113 mm
  • J (Bolt Hole Spacing): 90 mm
  • A (Housing Width): 25.5 mm
  • A1 (Bolt Hole Center): 11 mm
  • L2 (Total Width): 60 mm
  • Clearence: CN - normal clearance
  • Weight: 0.434 kg
  • Country of Origin: China

The UCFL203 RICH cast iron bearing unit is a high-quality product made in China, designed for secure and reliable mounting in various applications. It features a robust cast iron flanged housing and an insert bearing with a 17 mm bore. This unit is manufactured with normal (CN) clearance to ensure optimal performance. With an overall length (L) of 113 mm, a bolt hole spacing (J) of 90 mm, and a housing width (A) of 25.5 mm, it provides a stable and strong mounting solution. Weighing 0.434 kg, this RICH bearing unit delivers dependable and long-lasting performance.

Key Performance Advantages:

  • Cast Iron Housing: Provides robust and durable mounting.
  • Normal Clearance (CN): Ensures standard performance and reliability.
  • Secure Flanged Design: Ideal for applications requiring stable bearing support.
  • RICH Quality: Manufactured to high standards for consistent and dependable operation.

Data sheet

Inner Diameter
17
Weight
0,434
