HFL2026 RICH 20x26x26

RICH
HFL2026
€2.96
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

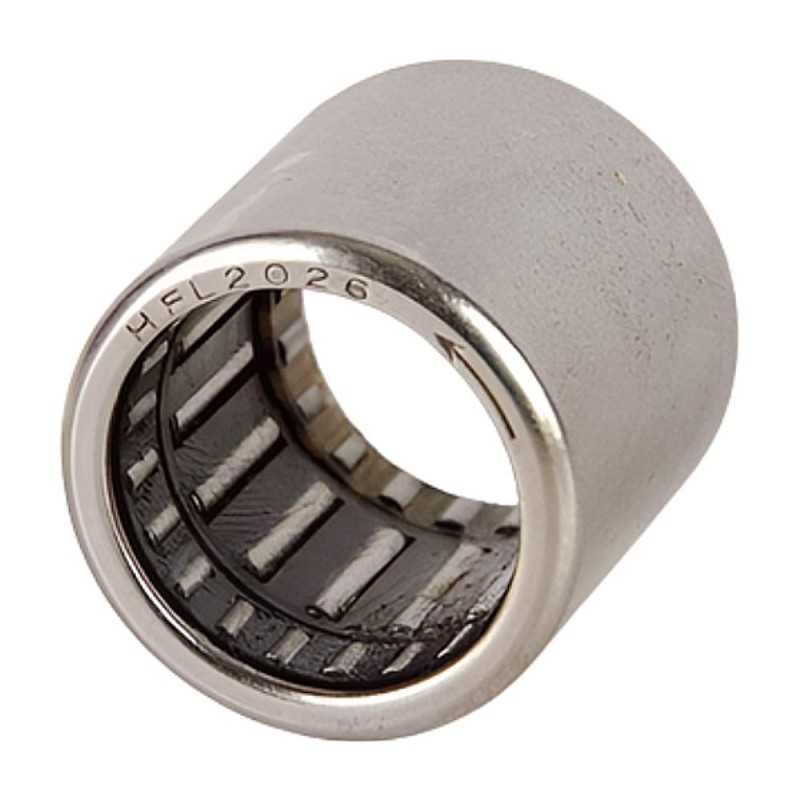

Drawn Cup Roller Clutch with Bearing HFL 2026 RICH - 20 x 26 x 26 mm

The HFL 2026 RICH is a drawn cup roller clutch integrated with a bearing. It's designed for applications that require one-way rotation, backstopping, or indexing capabilities. This compact unit features precisely formed rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing reliable clutching action. The integrated needle roller bearing assembly supports significant radial loads, making this a complete and robust solution for various power transmission needs. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. This unit has a 20 mm inner diameter, 26 mm outer diameter, and 26 mm width, with an approximate weight of 0.026 kg. It's manufactured in China by RICH.

Key Specifications:

  • Type: Drawn Cup Roller Clutch with Bearing
  • Dimensions: 20 mm inner diameter x 26 mm outer diameter x 26 mm width
  • Weight: 0.026 kg
  • Functionality: One-way rotation, backstopping, indexing
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Compact, space-saving design
  • Integrated needle roller bearing for high radial load support
  • Reliable one-way clutch action
  • Simple press-fit installation
  • Durable construction

Data sheet

Inner Diameter
20
Outer Diameter
26
Width
26
Weight
0,026
Cage
Steel Cage
Category
Drawn Cup Roller Clutch
