SS 6003-2RS RICH 17x35x10
Rating:
(0)
EUR €
- EUR €
- USD $

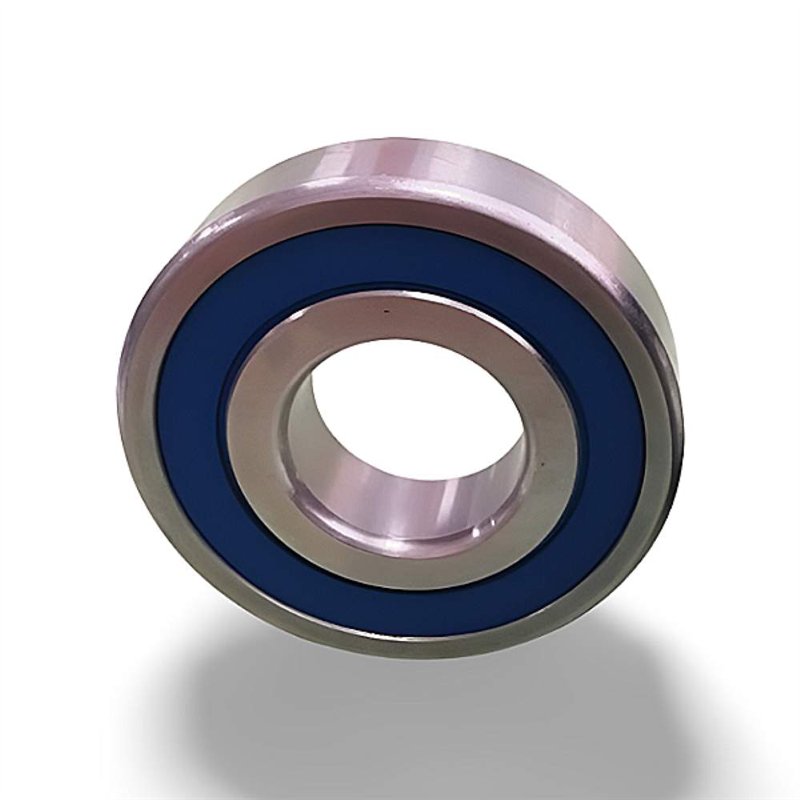

SS.6003.2RS RICH Stainless Steel Deep Groove Ball Bearing - 17 x 35 x 10 mm, Standard Clearance
Constructed from stainless steel to provide exceptional immunity to corrosion, the SS.6003.2RS RICH is a single row deep groove ball bearing designed for dependable operation. It features normal clearance (CN) and is equipped with double-sided contact rubber seals (2RS), which effectively block out contaminants and retain the necessary lubricant. The primary dimensions of this bearing are 17 mm for the inner diameter, 35 mm for the outer diameter, and a width of 10 mm. With a weight of approximately 0.039 kg, it also incorporates a durable steel cage. As per your requirement, this bearing is produced in China.
Key Specifications:
- Bearing Type:** Single Row Deep Groove Ball Bearing
- Model Number:** SS.6003.2RS RICH
- Inner Bore (d): 17 mm
- Outer Ring (D): 35 mm
- Bearing Width (B): 10 mm
- Material Composition:** Stainless Steel
- Cage Material:** Steel
- Radial Play:** CN (Normal)
- Seal Type:** Double Rubber Contact (2RS)
- Weight:** 0.039 kg
- Manufacturing Country:** China
- Main Characteristic:** Stainless Steel
Key Advantages:
- Excellent Corrosion Resistance:** Due to its stainless steel composition.
- Versatile Design:** Well-suited for both radial and axial loads in either direction.
- Standard Operating Clearance:** CN clearance is suitable for a wide variety of applications.
- Effective Protection:** The 2RS seals offer reliable exclusion of dirt and moisture.
- Robust and Durable:** The steel cage ensures a long service life.
- Place of Origin:** Made in China.
Data sheet
Inner Diameter
17
Outer Diameter
35
Width
10
Weight
0,039
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
