TRE 091004 LFT RICH 45x100x38/28

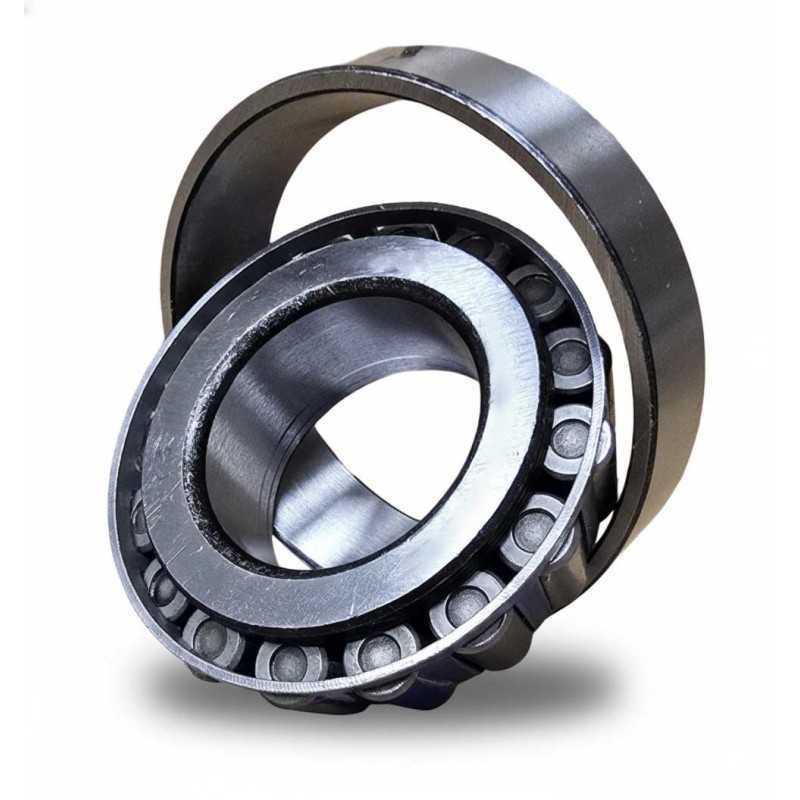

TRE 091004 LFT RICH – Tapered Roller Bearing – 45 x 100 x 38/28 mm

OE References:

• 90366-45061 TOYOTA
• 90366-45060 TOYOTA

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: TRE 091004 LFT
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Total Width (T): 38 mm
• Outer Ring Width (C): 28 mm
• Weight: 1.1 kg
• Country of Origin: China

Product Details:

• Separable Components: Modular structure consisting of an inner ring assembly with rollers and cage (cone) and a separate matching outer ring (cup).
• Row Configuration: Internal design based on a single row of tapered rolling elements aligned by a guiding cage.
• Dimensional Format: Geometric layout defined by a 45 mm inner bore, 100 mm outer diameter, 28 mm outer ring width, and a total assembled width of 38 mm.

Transparency Note: This bearing is manufactured under the RICH brand. OE and interchangeable references are provided solely for identification and do not imply affiliation with the original manufacturers.
