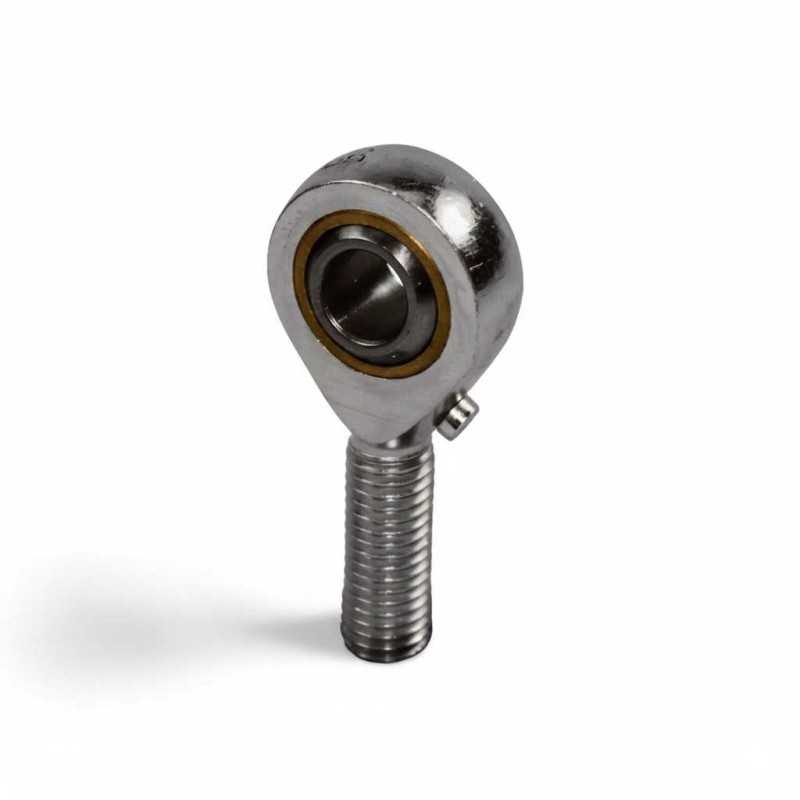

RGAS 18 RICH – Rod End | Thread Size: M18

RGAS 18 RICH – Rod End – 18 × 46 × 72 mm

Technical Specifications:

• Type: Rod end with male thread
• Brand: RICH
• Model Designation: RGAS 18
• Inner Diameter (d): 18 mm
• Outer Diameter (A): 46 mm
• Height to Axis (F): 72 mm
• Thread Size: M18
• Thread Length (GL): 44 mm
• Outer Ring Width (C): 16.5 mm
• Friction Pair: Steel/Bronze
• Housing Material: Carbon construction steel (C22 / AISI 1020)
• Dimensional Series: K
• Weight: 0.278 kg
• Country of Origin: China

Construction Features:

• Housing: Male-threaded rod end body manufactured from AISI 1020 carbon construction steel with zinc-plated surface treatment.
• Sliding Configuration: Internal assembly incorporating a bronze sliding interface positioned within the housing.
• Friction Interface: Steel-on-bronze contact pair arranged for articulation under load conditions.
• Dimensional Format: 18 × 46 × 72 mm configuration consistent with standardized geometry for series K rod ends.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
