  • HN 1412 RICH 14x20x12 HN1412 RICH

HN 1412 RICH 14x20x12

RICH
HN1412
€4.30
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

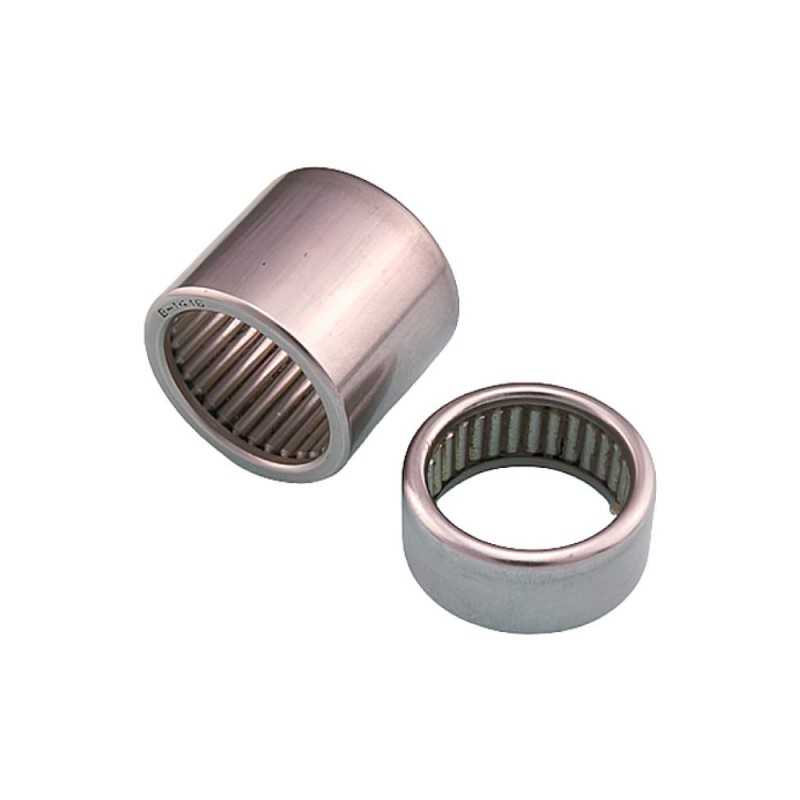

Needle Roller Bearing Without Inner Ring HN1412 RICH - 14 x 20 x 12 mm

The HN1412 RICH is a needle roller bearing designed without an inner ring. This makes it ideal for applications where the shaft can be hardened and precision-ground to serve as the inner raceway. This design offers a highly compact radial cross-section, making it perfectly suited for assemblies with limited space. This particular bearing has no cage, allowing for the maximum number of needle rollers to be installed, which provides a higher load-carrying capacity in a smaller space compared to caged designs. It's particularly effective in oscillating movements and situations where substantial radial loads need to be managed within a small envelope. Its dimensions are a 14 mm bore diameter, 20 mm outer diameter, and 12 mm width, with a weight of 0.01 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing Without Inner Ring
  • Dimensions: 14 mm bore diameter x 20 mm outer diameter x 12 mm width
  • Weight: 0.01 kg
  • Cage: None
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Extremely compact radial cross-section
  • High load-carrying capacity
  • High stiffness
  • Suitable for applications where shaft can serve as raceway
  • Economical solution for space-constrained designs

Data sheet

Inner Diameter
14
Outer Diameter
20
Width
12
Category
Needle Roller Bearing
