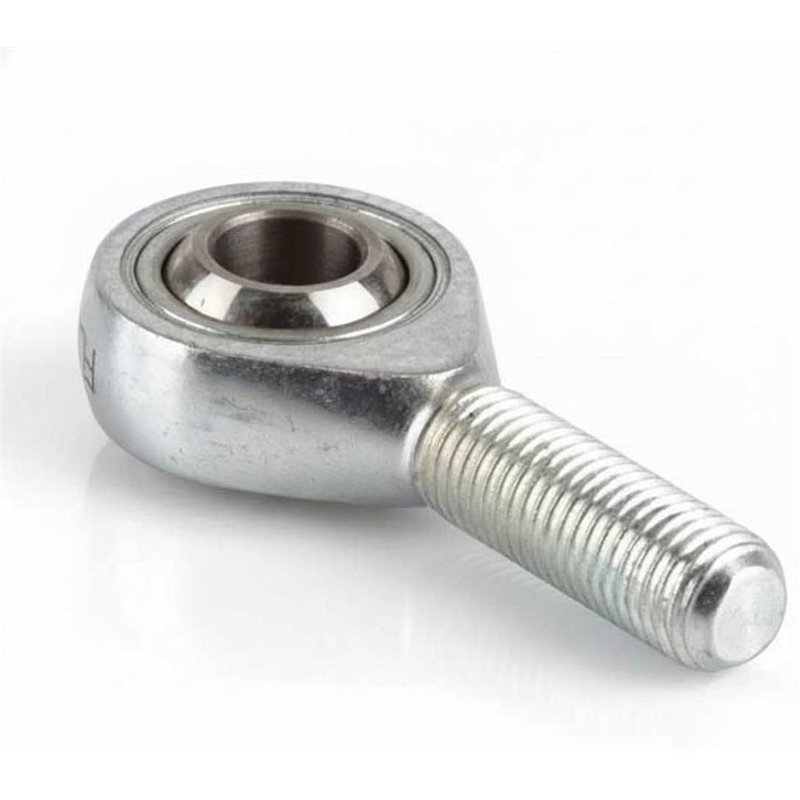

RGASW 10x1.25 C2 RICH – Rod End

RGASW 10x1.25 C2 RICH – Rod End – 10 x 28 x 48 mm

Technical Specifications:

• Type: Rod end with male thread (PTFE liner configuration)
• Brand: RICH
• Model Designation: RGASW 10x1.25 C2
• Inner Diameter (d): 10 mm
• Outer Diameter (A): 28 mm
• Height to Axis (F): 48 mm
• Thread Size: M10x1.25 (Fine pitch)
• Thread Length (GL): 28 mm
• Outer Ring Width (C): 10.5 mm
• Clearance: C2 (Smaller than normal)
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K/12L13 equivalent)
• Dimensional Series: K
• Weight: 0.064 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from free-cutting steel with a zinc-plated surface finish.
• Sliding Configuration: Internal assembly featuring a PTFE liner typically used in maintenance-free construction types.
• Clearance Specification: C2 internal clearance providing a tighter-than-normal tolerance for precise mechanical adjustment.
• Friction Interface: Steel on PTFE sliding contact surface for articulation under dynamic load conditions.
• Dimensional Format: Technical profile according to series K standards with a M10x1.25 fine thread pitch.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
