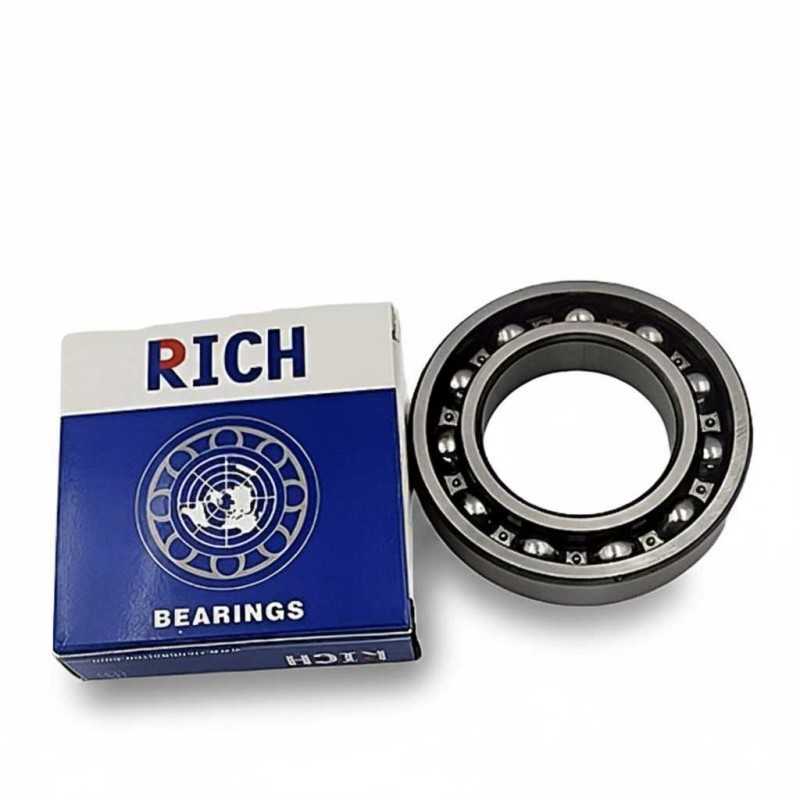

6220 RICH 100x180x34

6220 RICH – Single Row Deep Groove Ball Bearing – 100 x 180 x 34 mm

OE References:

• CLAAS: 0002194620

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6220
• Inner Diameter (d): 100 mm
• Outer Diameter (D): 180 mm
• Width (B): 34 mm
• Internal Clearance: CN (Normal clearance)
• Cage Material: Steel
• Sealing: Open (No seals)
• Weight: 3.03 kg
• Country of Origin: China

Product Details:

• Components: Consists of a solid inner ring, a solid outer ring, a single row of precision spherical rolling elements, and a ribbon-type pressed steel cage.
• Internal Geometry: Features deep, continuous raceway grooves with high structural conformity between the balls and the paths, engineered to sustain significant radial loads and moderate bidirectional axial forces in high-speed applications.
• Dimensional Set: Standardized metric 62-series boundary configuration specifying a 100 mm inner bore diameter, a 180 mm outside diameter, and a 34 mm total structural width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
