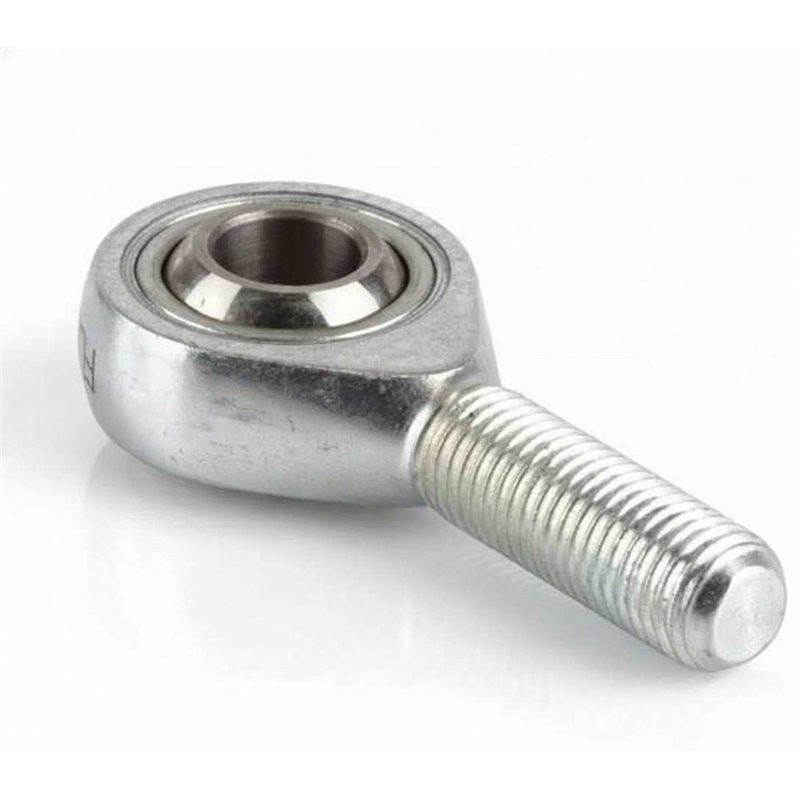

RGASW 12 RICH – Rod End

RGASW 12 RICH – Rod End – 12 x 32 x 54 mm

Technical Specifications:

• Type: Rod end with male thread (PTFE liner configuration)
• Brand: RICH
• Model Designation: RGASW 12
• Inner Diameter (d): 12 mm
• Outer Diameter (A): 32 mm
• Height to Axis (F): 54 mm
• Thread Size: M12
• Thread Length (GL): 32 mm
• Outer Ring Width (C): 12 mm
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Dimensional Series: K
• Weight: 0.094 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from free-cutting steel with a zinc-plated surface finish.
• Sliding Configuration: Internal assembly featuring a PTFE liner typically used in maintenance-free construction types.
• Friction Interface: Steel on PTFE sliding contact surface designed for articulation under dynamic load conditions.
• Dimensional Format: Technical profile compliant with dimensional series K standards for mechanical linkage integration.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
