K 24x28x12 RICH K24x28x12 RICH
search
  • K 24x28x12 RICH K24x28x12 RICH

K 24x28x12 RICH

RICH
K24x28x12
€2.16
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

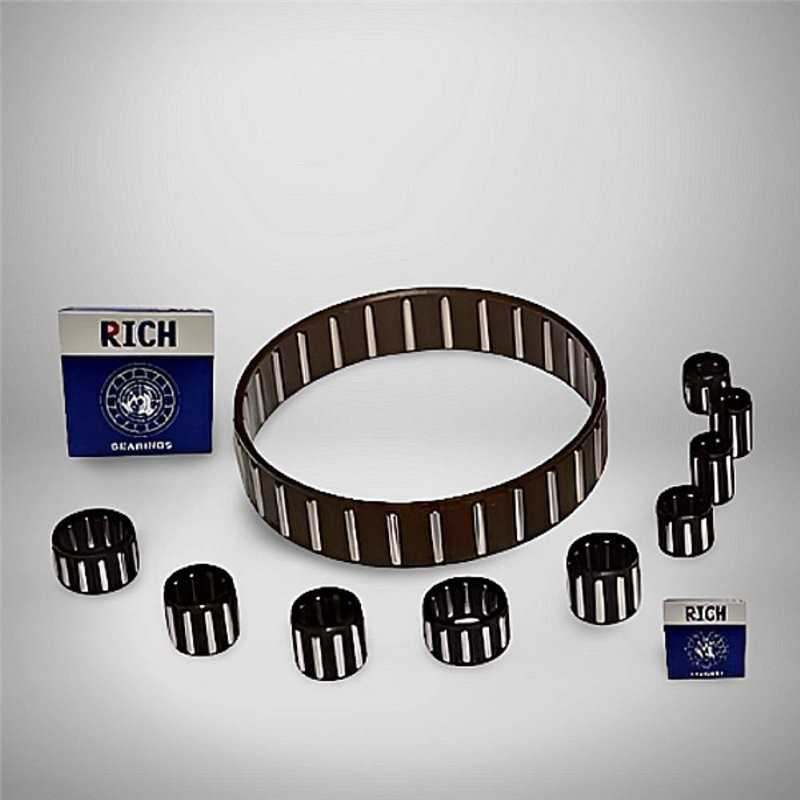

K 24x28x12 RICH Needle Roller and Cage Assembly - 24 x 28 x 12 mm

The K 24x28x12 RICH Needle Roller and Cage Assembly is a high-precision, compact bearing solution expertly manufactured by RICH in China. Designed for applications with limited radial space, this assembly provides maximum load-carrying capacity within a small cross-section. Its unique design, featuring a single row of needle rollers held by a robust steel cage, ensures excellent rigidity and high rotational speeds.

With precise dimensions of a 24 mm bore, 28 mm outer diameter, and a 12 mm width, this assembly is ideal for applications where space-saving is crucial. Despite its small size, it boasts efficient operation and durability, making it a reliable choice for various industrial and automotive uses. Weighing a mere 0.01 kg, this lightweight yet powerful component from RICH minimizes inertia while maximizing performance.

This RICH needle roller and cage assembly is perfectly suited for transmissions, gearboxes, automotive engines, air conditioning compressors, and other machinery where high load support and compact design are essential.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Brand: RICH
  • Model: K 24x28x12 RICH
  • Dimensions: 24 mm bore x 28 mm outer diameter x 12 mm width
  • Bore Diameter (d): 24 mm
  • Outer Diameter (D): 28 mm
  • Width: 12 mm
  • Cage Material: Steel
  • Weight: 0.01 kg
  • Country of Origin: China

Key Advantages:

  • Compact Design: Offers high load capacity within a very small radial cross-section, ideal for space-constrained applications.
  • High Load Capacity: Efficiently supports heavy radial loads due to the large number of needle rollers.
  • High Rotational Speed Capability: The robust steel cage ensures precise roller guidance, enabling higher operating speeds.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
  • Lightweight: Its minimal weight helps reduce overall system inertia.

Data sheet

Inner Diameter
24
Outer Diameter
28
Width
12
