Belt 1480 8MS 20 STD

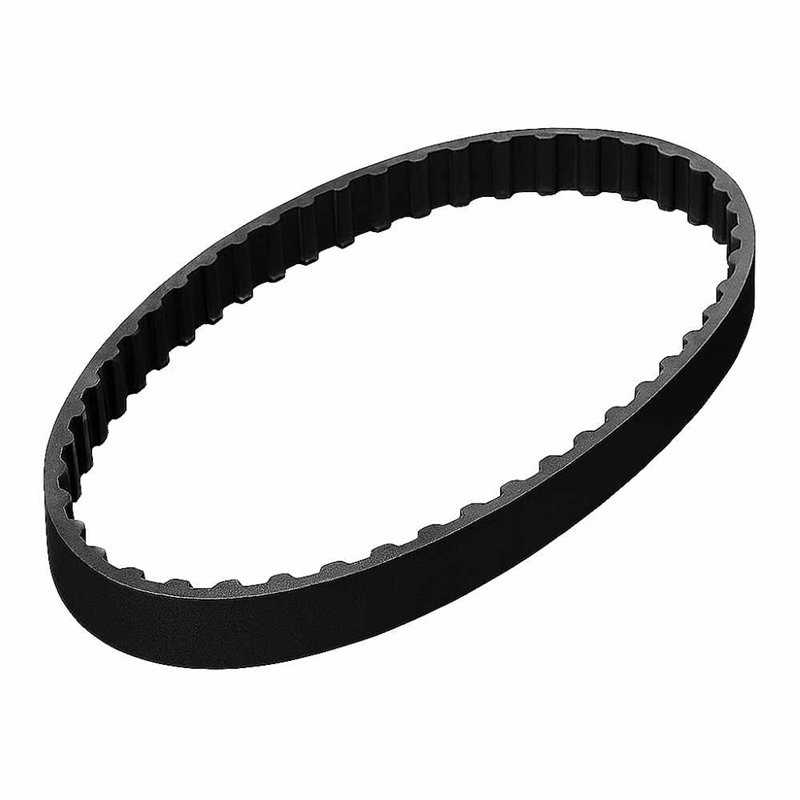

1480-S8M-20 RICH – Timing Belt

Technical Specifications:

• Type: Timing belt
• Brand: RICH
• Model Designation: 1480-S8M-20
• Interchangeable Reference: SIT CST1480S8M20
• Profile: S8M
• Pitch (t): 8 mm
• Pitch Length (Ld/Lp/Lw): 1480 mm
• Width: 20 mm
• Number of Teeth: 185
• Belt Thickness (hs): 5.6 mm
• Tooth Height (ht): 3.4 mm
• Material: Chloroprene
• Tensile Cord: Fiberglass
• Weight: 0.171 kg
• Country of Origin: China

Construction Features:

• Component Design: Built utilizing an advanced chloroprene rubber body compound formulated to maintain operational shape under mechanical stress.
• Internal Configuration: Equipped with highly stable fiberglass tensile cords to minimize stretching and maintain precise timing coordination over long lifespans.
• Dimensional Profile: Features an S8M curvilinear tooth profile with an 8 mm pitch, containing exactly 185 teeth along a 1480 mm total pitch length.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
