10-T5-610 RICH | Timing Belt Polyurethane 10-T5-610 RICH
search
  • 10-T5-610 RICH | Timing Belt Polyurethane 10-T5-610 RICH

10-T5-610 RICH | Timing Belt Polyurethane

RICH
10-T5-610
€5.41
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

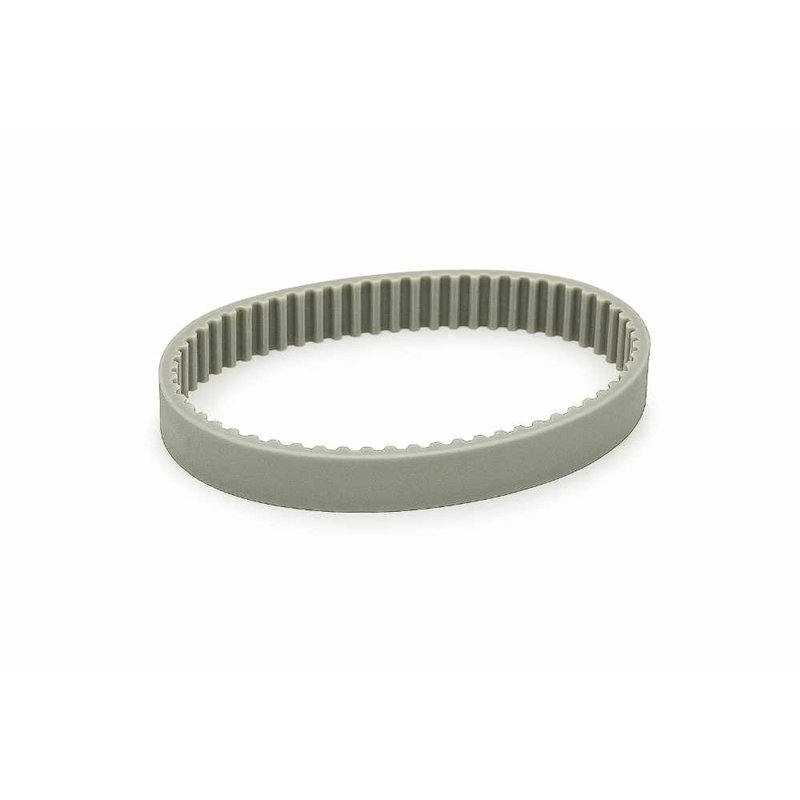

10-T5-610 RICH Polyurethane Timing Belt - T5 Profile - 610 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt, Polyurethane
  • Model: 10-T5-610
  • Profile: T5 (Trapezoidal Tooth)
  • Pitch Length (Lp): 610 mm
  • Pitch (t): 5 mm
  • Nominal Width: 10 mm
  • Number of Teeth: 122
  • Belt Thickness (hs): 2.2 mm
  • Tooth Height (ht): 1.2 mm
  • Weight: 0.013 kg
  • Country of Origin: China

The 10-T5-610 RICH is a precision Polyurethane Timing Belt manufactured by RICH. This belt is built for lightweight, highly accurate synchronous drives, particularly in linear motion applications, small automation systems, and sensitive equipment.

This model features the standard T5 profile, characterized by a 5 mm pitch and a robust 10 mm nominal width. The belt has a total pitch length of 610 mm and 122 teeth. Its construction from durable polyurethane provides excellent wear resistance, flexibility, and chemical inertness superior to traditional rubber belts. With a belt thickness of 2.2 mm and a tooth height of 1.2 mm, the 10-T5-610 RICH ensures highly precise indexing, low noise, and reliable long-term performance.

Key Performance Advantages:

  • Polyurethane Material: Offers superior wear, abrasion, and chemical resistance.
  • Precise Positioning: T5 profile ensures accurate synchronization for linear drive systems.
  • Dimensions: 10 mm width and 610 mm pitch length for compact, reliable drives.
  • Lightweight: Low mass for minimal inertia, benefiting dynamic motion applications.
