10-T5-780 RICH | Timing Belt Polyurethane
Rating:
(0)
EUR €
- EUR €
- USD $

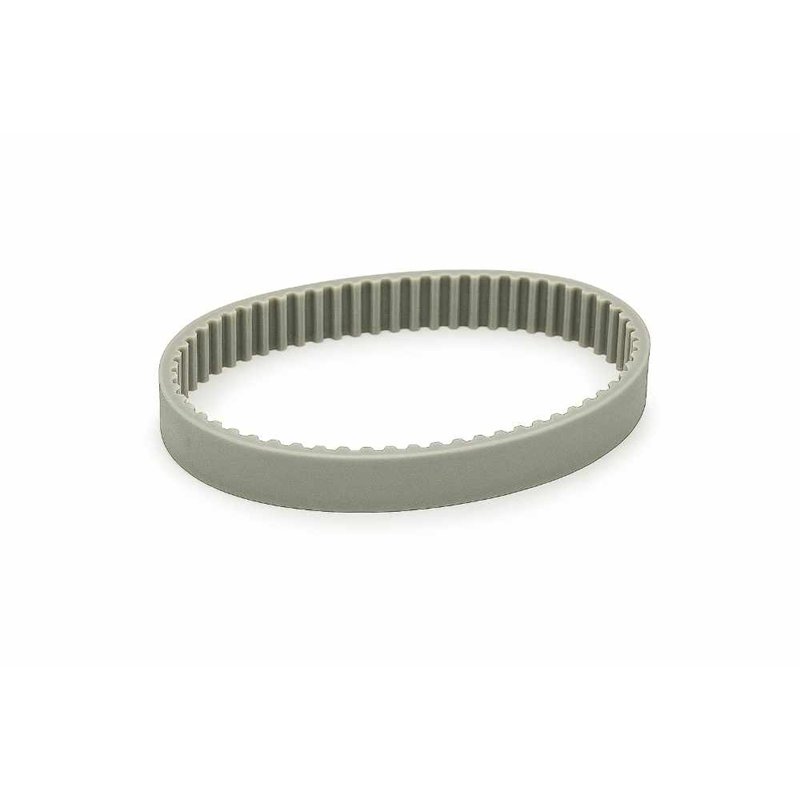

10-T5-780 RICH Polyurethane Timing Belt - T5 Profile - 780 mm Length
Technical Specifications:
- Brand: RICH
- Type: Timing Belt, Polyurethane
- Model: 10-T5-780
- Profile: T5 (Trapezoidal Tooth)
- Pitch Length (Lp): 780 mm
- Pitch (t): 5 mm
- Nominal Width: 10 mm
- Number of Teeth: 156
- Belt Thickness (hs): 2.2 mm
- Tooth Height (ht): 1.2 mm
- Weight: 0.017 kg
- Country of Origin: China
The 10-T5-780 RICH is a high-precision Polyurethane Timing Belt manufactured by RICH. This belt is engineered for reliable synchronous power transmission and highly accurate linear motion, making it ideal for automation systems, 3D printers, and precision machinery where positional accuracy is paramount.
This model utilizes the T5 profile, characterized by a 5 mm pitch, and features a nominal width of 10 mm. The belt has a total pitch length of 780 mm and 156 teeth. Constructed from durable polyurethane, it provides superior resistance to abrasion, chemicals, and wear, ensuring a longer service life and reliable, clean operation. The precise T5 tooth geometry and minimal weight of the 10-T5-780 RICH guarantee consistent, high-accuracy indexing and low operational inertia.
Key Performance Advantages:
- Polyurethane Material: Offers superior wear, abrasion, and chemical resistance for extended durability.
- Precise Synchronization: T5 profile ensures highly accurate positioning in linear drive systems.
- Compact Design: 10 mm width is suitable for drives in space-constrained applications.
- Low Maintenance: Provides clean, efficient, and low-vibration operation with minimal upkeep required.
