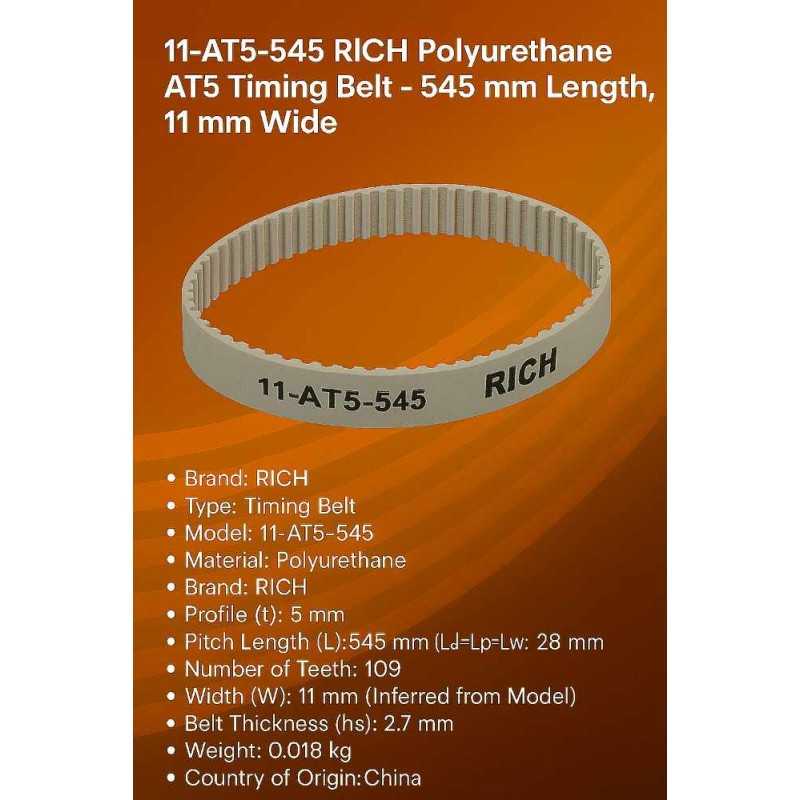

11-AT5-545 RICH Polyurethane AT5 Timing Belt - 545 mm Length, 11 mm Wide
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 11-AT5-545
- Material: Polyurethane
- Profile: AT5
- Pitch (t): 5 mm
- Pitch Length (L): 545 mm (Ld=Lp=Lw)
- Number of Teeth: 109
- Width (W): 11 mm (Inferred from Model)
- Belt Thickness (hs): 2.7 mm
- Tooth Height (ht): 1.2 mm
- Weight: 0.018 kg
- Country of Origin: China
The 11-AT5-545 RICH is a premium Polyurethane AT5 Timing Belt produced by RICH, engineered for high-precision, heavy-duty applications. This closed-loop belt features an AT5 profile with a pitch of 5 mm, a length of 545 mm, and a width of 11 mm. The robust polyurethane body offers high resistance to abrasion, oil, and various chemicals.
The AT profile is an evolution of the traditional T profile, offering increased shear strength and better load distribution for higher power density. The durable polyurethane construction, coupled with high-strength steel or aramid tensile cords (typical for AT profiles), ensures extremely accurate indexing, minimal backlash, and long-term dimensional stability. It is the ideal choice for linear drives, precision printing equipment, and advanced automated machinery.
Key Performance Advantages:
- Polyurethane Construction: High resistance to wear, oil, and chemicals, ensuring durability.
- AT5 Profile: Provides superior torque capacity and high-precision tooth engagement (5 mm pitch).
- Accurate Indexing: Optimized tooth form minimizes backlash and ensures high positioning accuracy.
- High Strength: Robust construction and tensile members deliver minimal elongation under load.
