10-T5-940 RICH | Timing Belt Polyurethane

RICH
10-T5-940
€7.21
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

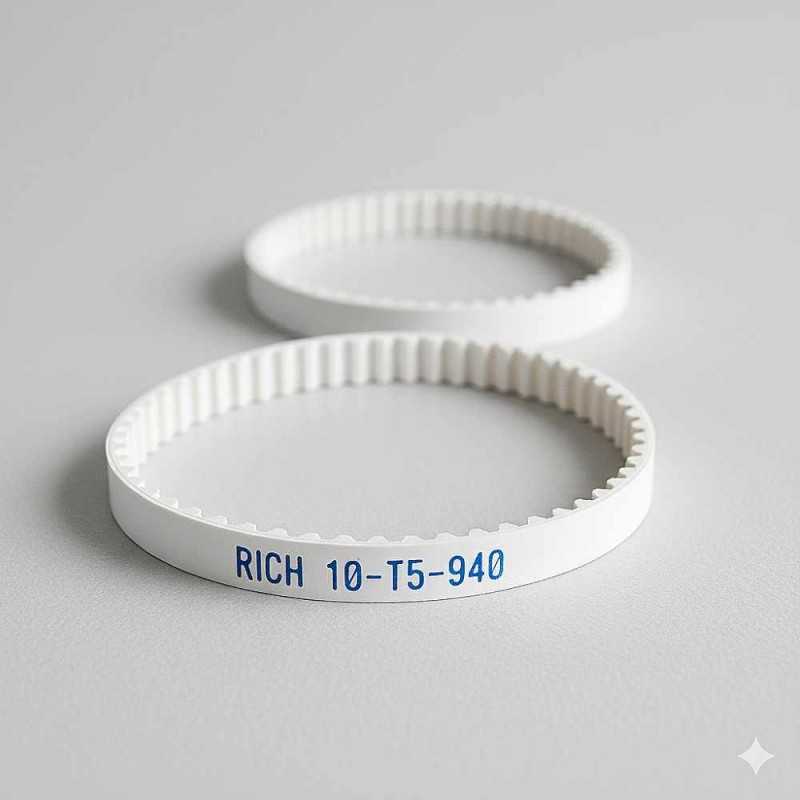

10-T5-940 RICH Polyurethane T5 Timing Belt - L=940 mm, W=10 mm

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 10-T5-940
  • Product Feature: Polyurethane

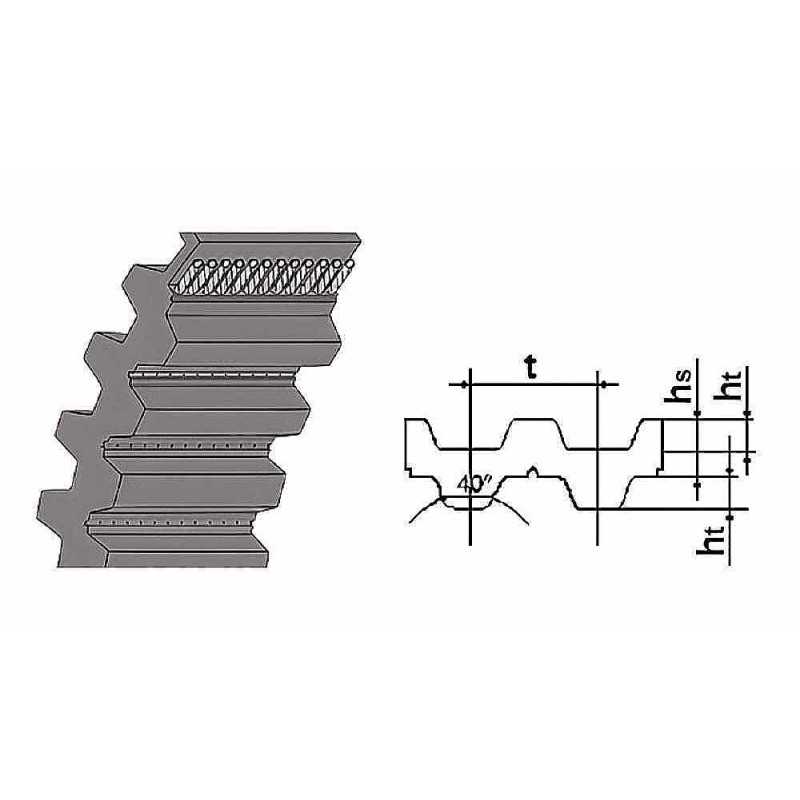

  • Profile: T5 (5 mm pitch)
  • Pitch (t): 5 mm
  • Pitch Length (Ld=Lp=Lw): 940 mm
  • Number of Teeth: 188
  • Width (W): 10 mm (Inferred from Model)
  • Belt Thickness (hs): 2.2 mm
  • Tooth Height (ht): 1.2 mm
  • Weight: 0.019 kg
  • Country of Origin: China

The 10-T5-940 RICH is a high-performance Polyurethane T5 Timing Belt produced by RICH, engineered for precise linear movement and synchronous drives. This 10 mm wide belt has a substantial pitch length of 940 mm, a 5 mm pitch, and a total of 188 teeth.

The use of polyurethane provides this belt with excellent operational characteristics, including enhanced abrasion resistance and superior longevity in environments exposed to moisture, oils, or certain chemicals. The trapezoidal T5 profile ensures robust and accurate engagement with mating pulleys, making the 10-T5-940 RICH an ideal choice for automation, packaging machinery, and other systems where reliable, non-slip motion over a long distance is essential.

Key Performance Advantages:

  • Polyurethane Construction: Offers exceptional wear resistance and is highly durable against oils and chemicals.
  • Precise Synchronization: T5 trapezoidal profile ensures accurate, non-slip positioning.
  • Long Pitch Length: 940 mm length suits larger frame machinery and long-span linear axes.
  • Dimensional Stability: Internal tensile cords ensure minimal stretch and consistent performance.
