1000-S8M-12 RICH | Timing Belt

RICH
1000-S8M-12
€6.52
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

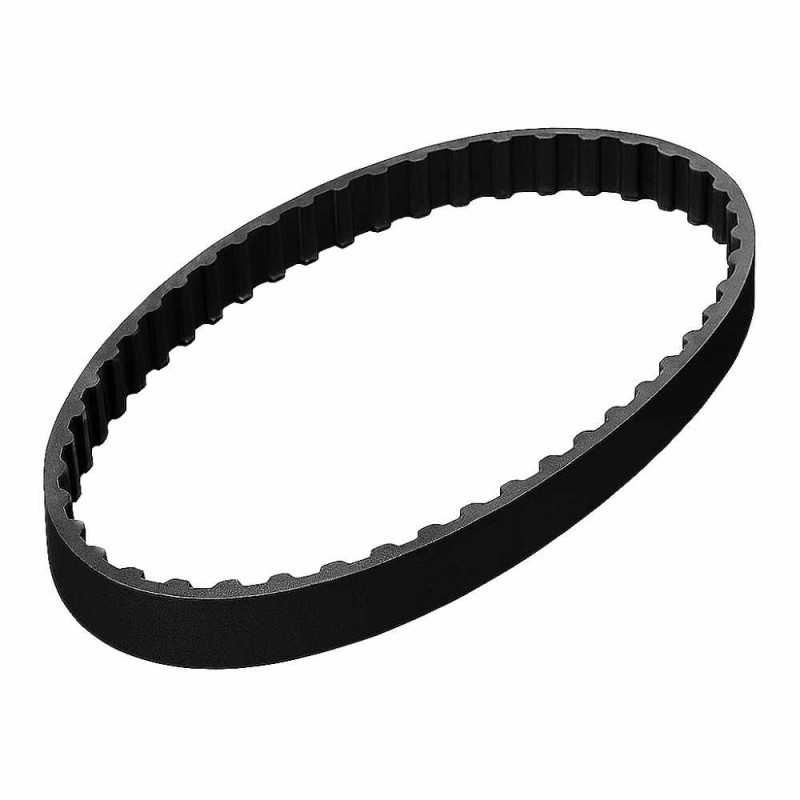

1000-S8M-12 RICH Timing Belt – S8M Profile – 1000 mm Pitch Length

Technical Specifications:

  • Product Type: Timing Belt
  • Model Designation: 1000-S8M-12
  • Brand: RICH
  • Profile: S8M
  • Pitch Length (Ld=Lp=Lw): 1000 mm
  • Pitch (t): 8 mm
  • Number of Teeth: 125
  • Belt Width: 12 mm
  • Belt Thickness (hs): 5.6 mm
  • Tooth Height (ht): 3.4 mm
  • Tensile Cord: Fiberglass
  • Material: Chloroprene
  • Weight: 0.069 kg
  • Country of Origin: China

The 1000-S8M-12 RICH is a high-performance timing belt designed for synchronous transmission in industrial automation and precision machinery. With a pitch length of 1000 mm and S8M curvilinear profile, it ensures quiet operation, accurate meshing, and high torque capacity.

Its 12 mm width and fiberglass tensile cords provide excellent dimensional stability and resistance to elongation. The chloroprene rubber body offers durability and chemical resistance, while the Top Drive STD feature ensures compatibility with standard pulleys and enhanced load distribution.

Key Performance Advantages:

  • S8M Profile: Curvilinear tooth geometry for smooth and precise engagement.
  • 125 Teeth: Optimized for fine motion control and torque transmission.
  • Top Drive STD Feature: Compatible with standard pulleys and high-load systems.
  • Durable Construction: Chloroprene body with fiberglass cords for long service life.

Profile Details: S8M (Super Torque 8 mm)

The S8M profile belongs to the STD/STS family of curvilinear timing belts, designed for high-torque, low-noise transmission. Its rounded tooth geometry increases surface contact with the pulley, reducing wear and improving load distribution.

Parameter Value
Tooth Geometry Curvilinear (involute)
Pitch (t) 8.00 mm
Tooth Height (ht) 3.4 mm
Total Belt Height (hs) 5.6 mm
Cord Material Fiberglass
Temperature Range –30 °C to +100 °C
Noise Level Low
Standard ISO 13050

Application Note: S8M belts are ideal for automation, robotics, and high-precision drives requiring quiet operation and high torque transmission.

Transparency Note: This belt is manufactured under the RICH brand. The code 1000-S8M-12 is used solely for compatibility identification and does not imply any affiliation with other brands. The product is clearly marked with its actual brand and country of origin.
