1120-8M-35 RICH | Timing Belt
Rating:
(0)
EUR €
- EUR €
- USD $

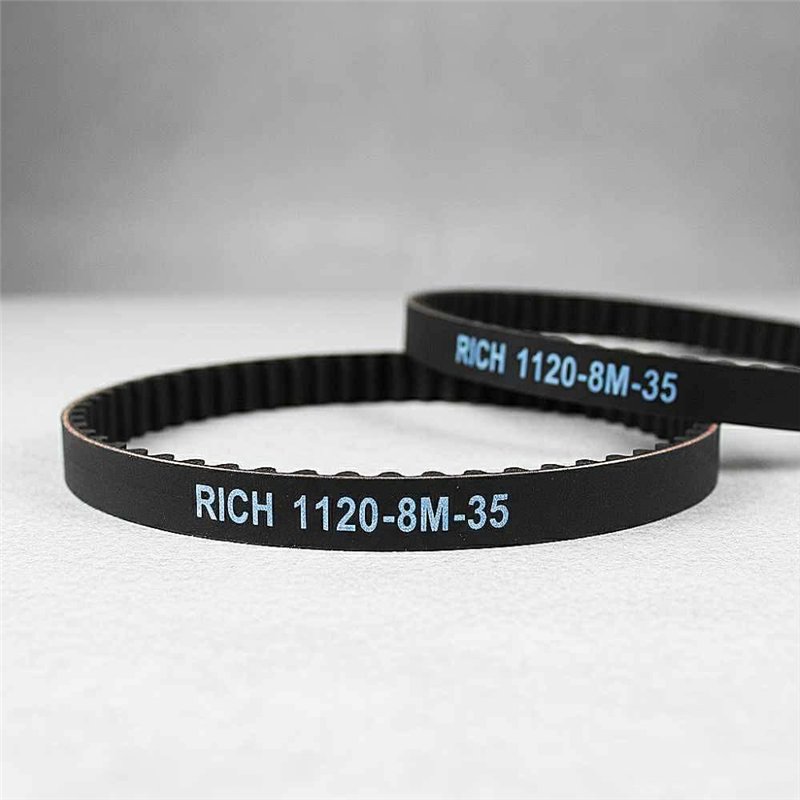

1120-8M-35 RICH 8M Profile Timing Belt - L=1120 mm, W=35 mm
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 1120-8M-35
- Profile: 8M (8 mm pitch)
- Pitch (t): 8 mm
- Pitch Length (Ld=Lp=Lw): 1120 mm
- Number of Teeth: 140
- Width (W): 35 mm (Inferred from Model)
- Belt Thickness (hs): 5.6 mm
- Tooth Height (ht): 3.4 mm
- Weight: 0.208 kg
- Country of Origin: China
The 1120-8M-35 RICH is a heavy-duty 8M Profile Timing Belt produced by RICH, designed for reliable, high-power synchronous drives. The belt's robust construction and 35 mm width make it ideal for machinery requiring significant torque transfer. It features a long pitch length of 1120 mm with an 8 mm pitch, totaling 140 teeth.
The curvilinear 8M tooth design minimizes the stress concentration at the tooth root, allowing for higher load capacity compared to trapezoidal profiles. This makes the 1120-8M-35 RICH highly suited for major industrial applications, including heavy machinery, machine tools, and demanding processing equipment. Constructed with high-strength tensile cords and durable compounds, the belt delivers exceptional dimensional stability, high fatigue resistance, and a long service life.
Key Performance Advantages:
- High-Torque 8M Profile: Curvilinear tooth shape provides superior load-carrying capacity.
- Wide Width (35 mm): Ensures robust power transfer and excellent stability for heavy-duty applications.
- Synchronous Drive: Delivers positive, non-slip transmission for accurate speed and timing.
- Low Maintenance: Built for high efficiency and long service life in industrial environments.
