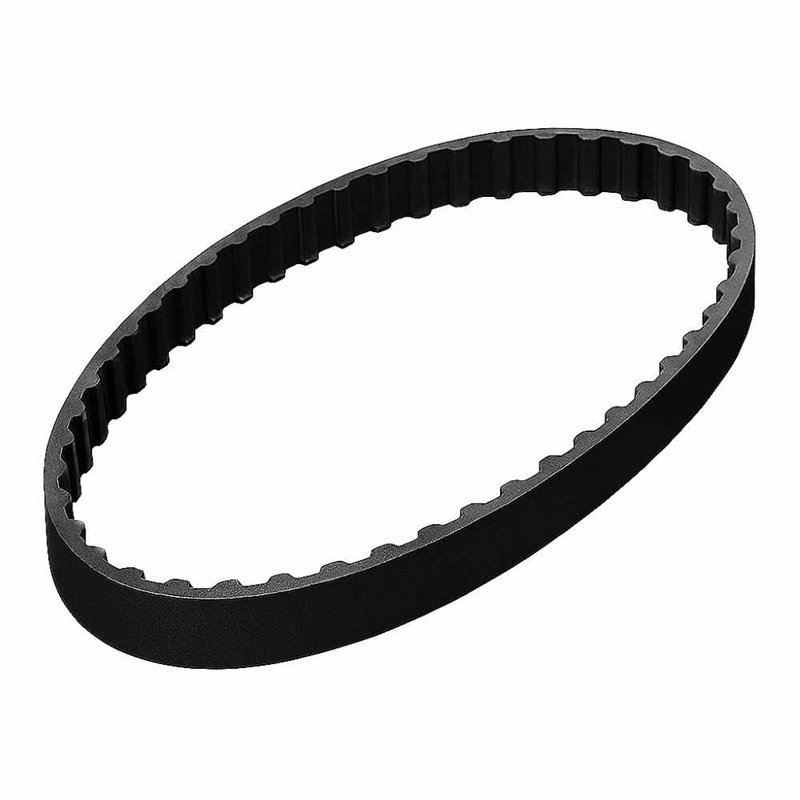

1136-S8M-30 RICH Timing Belt - S8M Profile - 1136 mm Length
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 1136-S8M-30
- Pitch Length (Lp): 1136 mm
- Profile: S8M (Curvilinear Tooth)
- Pitch (t): 8 mm
- Nominal Width: 30 mm
- Number of Teeth: 142
- Belt Thickness (hs): 5.6 mm
- Tooth Height (ht): 3.4 mm
- Weight: 0.188 kg
- Country of Origin: China
The 1136-S8M-30 RICH is an industrial-grade, maximum-width Timing Belt manufactured by RICH, designed for critical synchronous drives that require immense power and flawless precision. This belt incorporates the high-capacity S8M profile, which features an 8 mm curvilinear pitch for superior torque transfer, exceptional load distribution, and reduced noise.
This model is distinguished by its heavy-duty 30 mm nominal width, which is engineered to handle the highest loads and distribute force reliably across the full 1136 mm pitch length. With 142 teeth (3.4 mm high) and a 5.6 mm belt thickness, the belt guarantees non-slip, accurate positioning necessary for powerful machinery. The 1136-S8M-30 RICH is the optimal choice for the most demanding applications in heavy equipment and high-performance industrial automation.
Key Performance Advantages:
- Ultra-Wide (30 mm): Provides the absolute maximum load and torque capacity for the profile size.
- Superior Power Transfer: S8M profile ensures high efficiency and minimal tooth wear.
- Accurate Timing: 142 teeth guarantee precise, non-slip synchronization across the entire 1136 mm length.
- Heavy-Duty Build: Engineered for reliable, long-life performance in severe operating conditions.
