1120-S8M-13 RICH | Timing Belt 1120-S8M-13 RICH
search
  • 1120-S8M-13 RICH | Timing Belt 1120-S8M-13 RICH

1120-S8M-13 RICH | Timing Belt

RICH
1120-S8M-13
€5.31
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

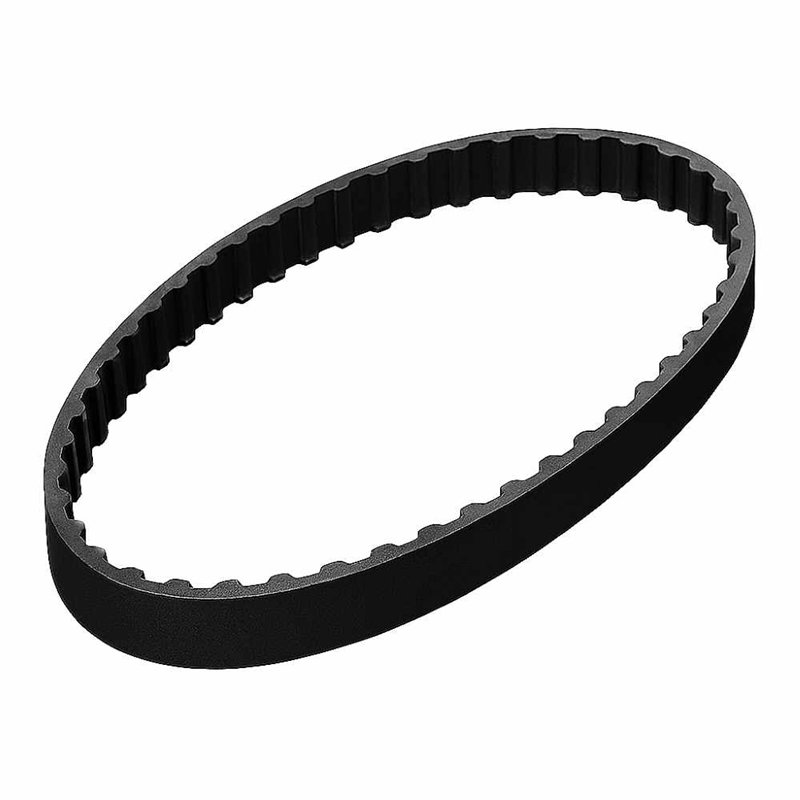

1120-S8M-13 RICH Timing Belt - S8M Profile - 1120 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1120-S8M-13
  • Pitch Length (Lp): 1120 mm
  • Profile: S8M (Curvilinear Tooth)
  • Pitch (t): 8 mm
  • Nominal Width: 13 mm
  • Number of Teeth: 140
  • Weight: 0.077 kg
  • Country of Origin: China

The 1120-S8M-13 RICH is a high-performance Timing Belt manufactured by RICH. This belt is engineered with the advanced S8M profile, featuring a curvilinear tooth form and an 8 mm pitch, which provides superior load capacity, high efficiency, and reduced shear stress compared to conventional profiles. It has a pitch length of 1120 mm.

With 140 teeth and a nominal width of 13 mm, this belt is ideal for demanding synchronous drives that require high torque transmission and accurate positioning. The S8M profile ensures smooth, quiet operation and exceptional resistance to tooth jump, even under varying or intermittent loads. The durable construction is built for minimal elongation and a long service life, making the 1120-S8M-13 RICH a reliable component for machine tools, automation systems, and high-precision mechanical applications.

Key Performance Advantages:

  • High Torque Capability: S8M profile delivers excellent power transmission capacity.
  • Precise Timing: Non-slip operation ensures highly accurate positioning and synchronization.
  • Robust Width (13 mm): Provides good load capacity for medium-duty synchronous drives.
  • Smooth Operation: Curvilinear tooth form reduces noise and vibration.
