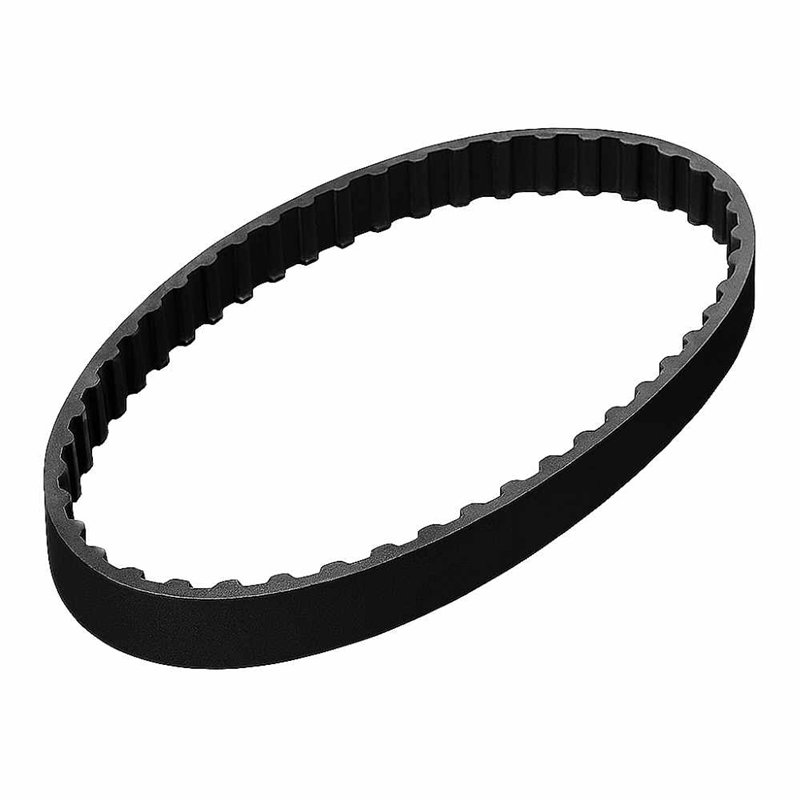

1120-S8M-27 RICH Timing Belt - S8M Profile - 1120 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1120-S8M-27
  • Pitch Length (Lp): 1120 mm
  • Profile: S8M (Curvilinear Tooth)
  • Pitch (t): 8 mm
  • Nominal Width: 27 mm
  • Number of Teeth: 140
  • Weight: 0.16 kg
  • Country of Origin: China

The 1120-S8M-27 RICH is an ultra-wide, heavy-duty Timing Belt manufactured by RICH, designed for maximum power transmission and synchronization. This belt features the high-performance S8M profile, utilizing an 8 mm curvilinear pitch that ensures superior load capacity and high efficiency under severe conditions.

This model is built with a pitch length of 1120 mm and a premium nominal width of 27 mm. This extra-wide 27 mm construction is engineered to handle the highest torque requirements and significantly increases the belt's resistance to dynamic loads. With 140 teeth, the belt provides reliable, non-slip, and accurate timing for large industrial machinery, powerful pumps, and demanding automation systems where robust performance is critical.

Key Performance Advantages:

  • Extreme Width (27 mm): Provides maximum load and torque capacity for heavy-duty applications.
  • High Synchronicity: S8M profile and 140 teeth ensure precise, non-slip motion control.
  • Durable Construction: Built for extended service life and reliable operation in challenging industrial settings.
  • Standard Pitch: 8 mm pitch for compatibility with standard S8M components.
