10-T5-590-DL RICH | Double Sided Timing Belt Polyurethane

RICH
10-T5-590-DL
€5.30
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

10-T5-590-DL RICH Double Sided Polyurethane T5 Timing Belt - L=590 mm, W=10 mm

Technical Specifications:

  • Brand: RICH
  • Type: Double Sided Timing Belt
  • Model: 10-T5-590-DL
  • Product Feature: Polyurethane, Double Sided

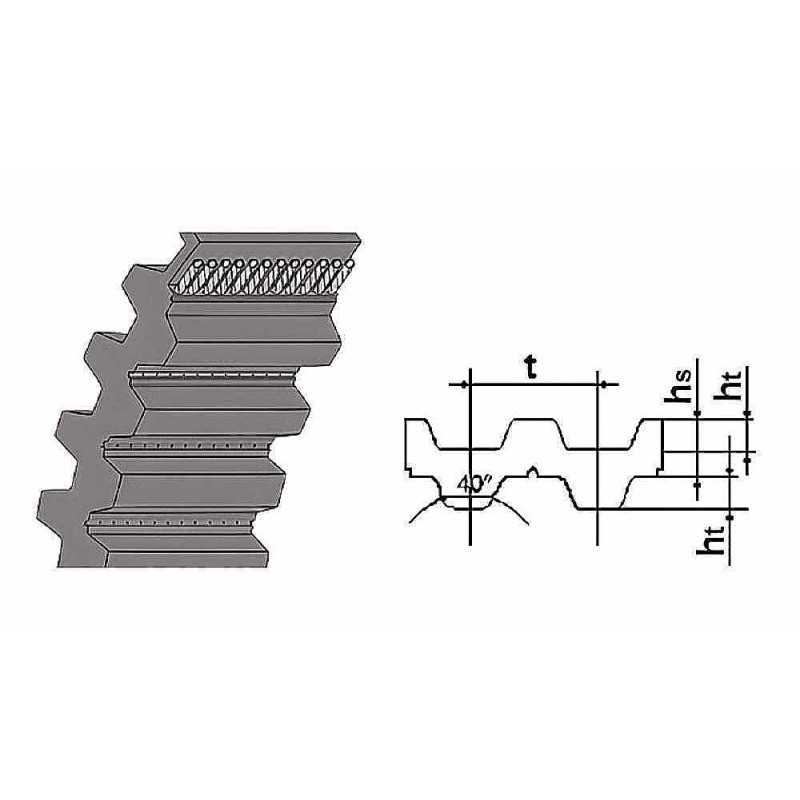

  • Profile: T5-DL (5 mm pitch, Double Layer)
  • Pitch (t): 5 mm
  • Pitch Length (Ld=Lp=Lw): 590 mm
  • Number of Teeth (per side): 118
  • Width (W): 10 mm (Inferred from Model)
  • Belt Thickness (hs): 3.4 mm
  • Tooth Height (ht): 1.2 mm
  • Weight: 0.019 kg
  • Country of Origin: China

The 10-T5-590-DL RICH is an advanced Double Sided Polyurethane T5 Timing Belt, produced by RICH, specifically engineered for complex drive systems. This belt is double-toothed, allowing for synchronized power transmission and indexing using both faces of the belt simultaneously.

The polyurethane construction provides exceptional durability, resisting wear, oils, and various chemicals better than traditional rubber. With a pitch length of 590 mm, a 5 mm pitch, and a width of 10 mm, this belt is perfectly suited for multi-axis or serpentine drives, reversing applications, and situations where two or more pulleys must be driven from opposite sides of the belt. The total belt thickness is 3.4 mm, indicating robust design for reliable performance under tension.

Key Performance Advantages:

  • Double Sided Teeth: Allows for power transmission and synchronization from both belt faces.
  • Polyurethane Material: Provides superior resistance to abrasion, oils, and chemical degradation.
  • Precise T5-DL Profile: Ensures accurate, non-slip positioning for multi-pulley systems.
  • High Stability: Durable construction and tensile cords provide consistent length and minimized stretch.
