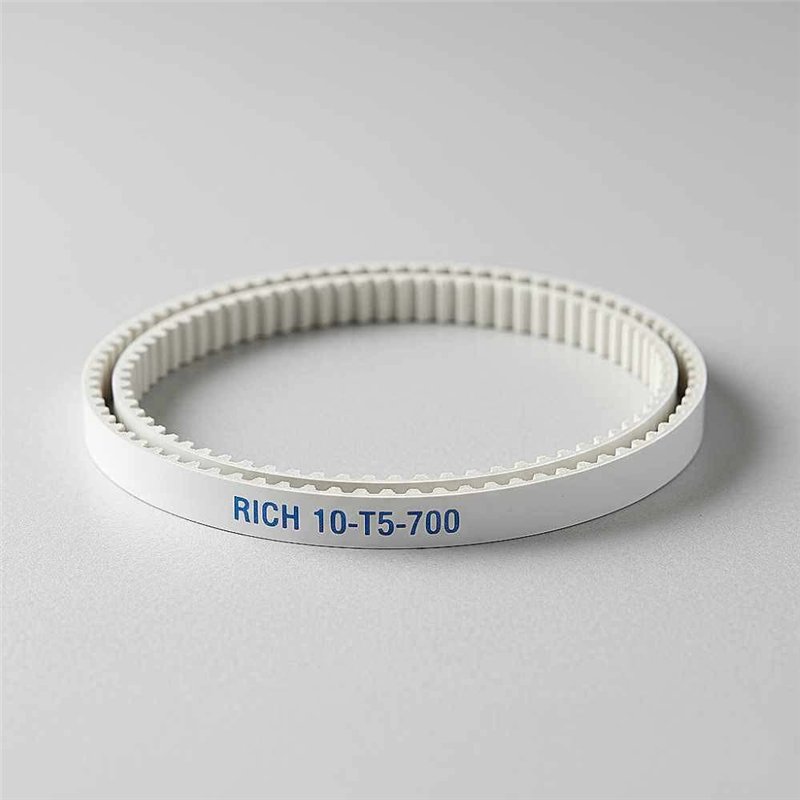

10-T5-700 RICH Polyurethane T5 Timing Belt - L=700 mm, W=10 mm
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 10-T5-700
- Product Feature: Polyurethane
- Profile: T5 (5 mm pitch)
- Pitch (t): 5 mm
- Pitch Length (Ld=Lp=Lw): 700 mm
- Number of Teeth: 140
- Width (W): 10 mm (Inferred from Model)
- Belt Thickness (hs): 2.2 mm
- Tooth Height (ht): 1.2 mm
- Weight: 0.016 kg
- Country of Origin: China
The 10-T5-700 RICH is a high-quality Polyurethane T5 Timing Belt produced by RICH, engineered for precision synchronization and motion control. This 10 mm wide belt boasts a total pitch length of 700 mm, a 5 mm pitch, and a total of 140 teeth.
The exceptional characteristics of the polyurethane material ensure this belt is highly resistant to abrasion, chemical exposure, and oil contamination, leading to extended service life and reduced downtime. This T5 profile belt is suitable for light to medium-duty applications, particularly in automated systems, printers, and precision indexing machinery where maintaining exact synchronization is crucial. The 10-T5-700 RICH delivers robust, non-slip performance with minimal maintenance requirements.
Key Performance Advantages:
- Polyurethane Construction: Offers exceptional durability and superior resistance to oils and chemicals.
- Precise Synchronization: T5 trapezoidal profile ensures accurate, non-slip positioning.
- Dimensional Stability: Internal tensile cords ensure consistent pitch length and minimal elongation.
- Compact T5 Profile: Ideal for space-constrained, light-duty synchronous drives.
