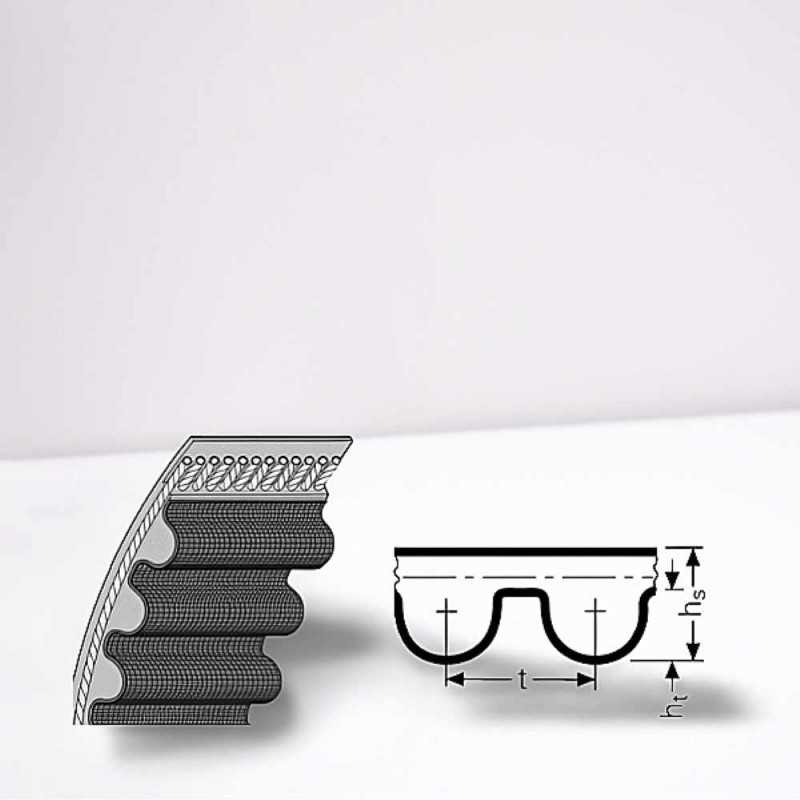

100-XL-6,35 RICH CLASSIC XL Timing Belt - L=254 mm, t=5.08 mm

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 100-XL-6,35 (100-XL-025)
  • Profile: XL
  • Product Feature: Classica
  • Pitch (t): 5.08 mm
  • Pitch Length (Ld=Lp=Lw): 254 mm
  • Number of Teeth: 50
  • Material: Polichloroprene (Hibrex)
  • Tensile Cord: Fiberglass
  • Belt Thickness (hs): 2.3 mm
  • Tooth Height (ht): 1.27 mm
  • Country of Origin: China

The 100-XL-6,35 RICH is a CLASSICA XL Timing Belt engineered by RICH for reliable, non-slip synchronous power transmission. This belt is defined by its precise metric properties, including a pitch length of 254 mm and an XL pitch of 5.08 mm, featuring 50 teeth.

The belt is expertly crafted from high-quality polichloroprene (Hibrex), providing excellent durability and resistance to oil, heat, and aging. It is internally reinforced with fiberglass tensile cords, which deliver exceptional strength, superior flex fatigue resistance, and dimensional stability, minimizing maintenance needs. With a belt thickness of 2.3 mm and tooth height of 1.27 mm, this RICH timing belt is ideal for compact drive systems requiring accurate indexing, high mechanical efficiency, and low noise levels.

Key Performance Advantages:

  • Synchronous Drive: Provides positive, non-slip power transmission for precise indexing.
  • High Durability: Polichloroprene compound offers resistance to wear, oil, and heat.
  • Fiberglass Cords: Ensures high strength, stability, and minimum elongation under load.
  • XL Profile: Suitable for light to medium duty power transmission applications.
