110-XL-9,53 RICH XL Timing Belt 110XL037 RICH
search
  • 110-XL-9,53 RICH XL Timing Belt 110XL037 RICH

110-XL-9,53 RICH XL Timing Belt

The 110-XL-9,53 RICH is an XL Timing Belt (L 279.4 mm, W 9.53 mm) with 55 teeth for light-duty synchronous drives.

RICH
110XL037
€1.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

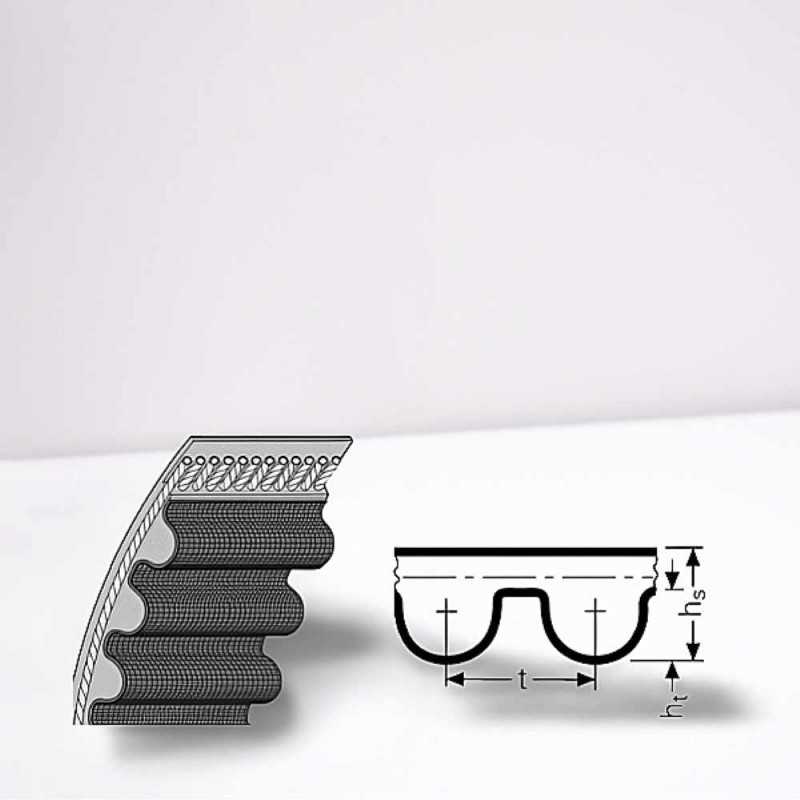

110-XL-9,53 RICH XL Timing Belt - L=279.4 mm, t=5.08 mm

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 110-XL-9,53 (110-XL-037)
  • Profile: XL
  • Pitch (t): 5.08 mm
  • Pitch Length (Ld=Lp=Lw): 279.4 mm
  • Number of Teeth: 55
  • Width (W): 9.53 mm (Inferred from Model)
  • Belt Thickness (hs): 2.3 mm
  • Tooth Height (ht): 1.27 mm
  • Weight: 0.006 kg
  • Country of Origin: China

The 110-XL-9,53 RICH is a reliable XL Timing Belt produced by RICH, specifically designed for applications requiring precise synchronous motion and light to medium power transfer. This belt features a total pitch length of 279.4 mm with a standard XL pitch of 5.08 mm across 55 teeth. The nominal width of this belt is 9.53 mm (3/8").

Constructed with durable synthetic materials and reinforced with high-strength tensile cords, the 110-XL-9,53 RICH minimizes stretch and maintains dimensional stability throughout its service life. The XL trapezoidal tooth form ensures positive engagement with mating pulleys, providing high mechanical efficiency, accurate indexing, and low operational noise. It is an excellent choice for general machinery, packaging equipment, and automated systems.

Key Performance Advantages:

  • Synchronous Drive: Provides positive, non-slip power transmission for accurate positioning.
  • XL Profile: Standard trapezoidal tooth form for compatibility across many applications.
  • High Efficiency: Delivers reliable power transfer with minimal friction loss.
  • Dimensional Stability: Reinforced cords ensure consistent length and minimal stretch under load.
