CF4UUR-A RICH 4x12x8

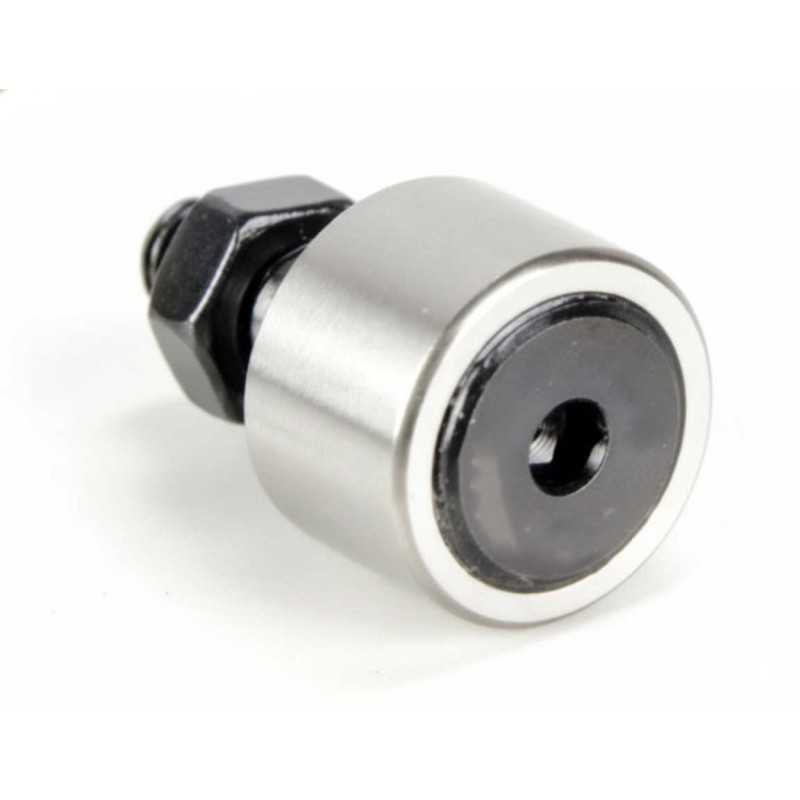

CF4UUR-A RICH – Cam Follower, Concentric Stud – 4 x 12 x 8 mm

Technical Specifications:

• Type: Cam follower, concentric stud
• Brand: RICH
• Model Designation: CF4UUR-A
• Inner Diameter / Stud Diameter (d): 4 mm
• Outer Diameter (D): 12 mm
• Outer Ring Width (C): 8 mm
• Total Bearing Length (B1): 20 mm
• Thread Size: M4
• Outer Ring Profile: Crowned / Rounded outer ring (R)
• Cage Material: Steel
• Sealing: Double-sided rubber contact seal (UUR)
• Weight: 0.01 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled crowned outer ring, solid concentric stud with integrated mounting thread, steel cage assembly, rolling elements, and double-sided rubber contact seals.
• Configuration: Stud-type track roller designed for heavy radial loads, featuring a rounded outer ring profile to reduce edge stress under misalignment conditions.
• Rolling Elements: Needle roller complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
