KR 90 PPA RICH 30x90x35

RICH
KR90PP
€25.75
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

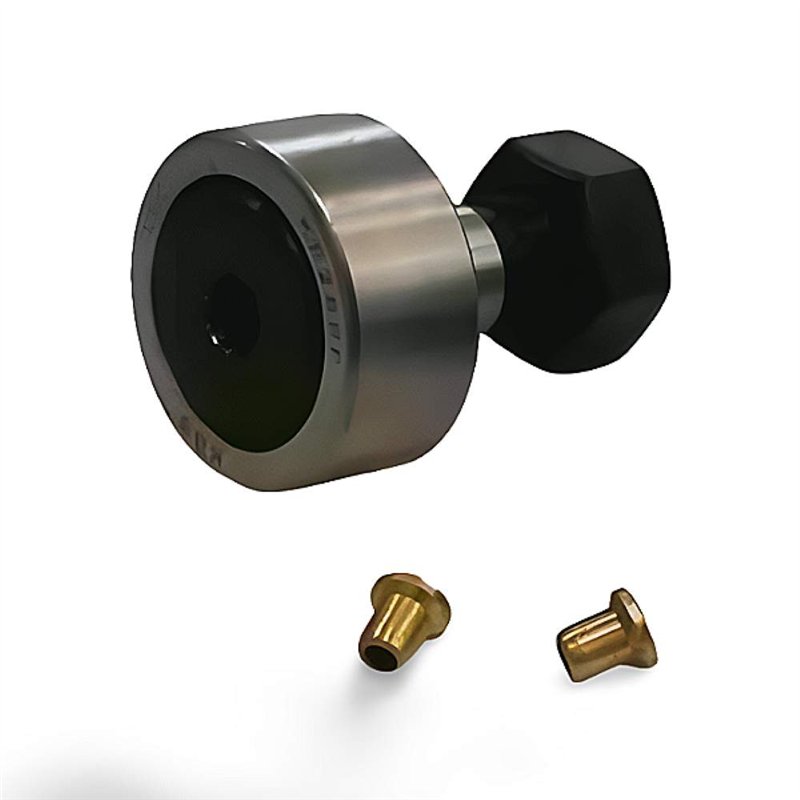

KR90.PP RICH Cam Follower, Concentric Stud - 30 x 90 x 35 mm

The KR90.PP RICH is a robust cam follower with a concentric stud, designed for demanding motion control applications. This component has key roller dimensions of 30 mm inner diameter, 90 mm outer diameter, and a roller width of 35 mm. The bearing length (B1) is 100 mm. It features a steel cage, a rounded outer ring, and double-sided rubber contact seals. The thread size of the concentric stud is M30x1.5. It weighs approximately 2.22 kg and is made in China. Cam followers are designed to follow cams or tracks, and the concentric stud allows for easy and precise mounting, even for heavier loads. The rounded outer ring helps to distribute the load and reduce stress on the mating surface, while the double-sided rubber seals provide excellent protection against contamination in harsh environments.

Key Specifications:

  • Component Type: Cam Follower, Concentric Stud
  • Model:** KR90.PP RICH
  • Inner Diameter (d): 30 mm (of the integrated bearing)
  • Outer Diameter (D): 90 mm (of the roller)
  • Roller Width (B): 35 mm
  • Bearing Length (B1): 100 mm
  • Cage Material:** Steel
  • Outer Ring Shape:** Rounded
  • Sealing:** Double-sided Rubber, Contact
  • Thread Size:** M30x1.5
  • Weight:** 2.22 kg
  • Country of Origin:** China

Key Features:

  • Robust Design:** Suitable for heavy-duty motion control applications.
  • Concentric Stud:** Allows for easy and precise mounting.
  • Rounded Outer Ring:** Optimizes load distribution and reduces stress.
  • Steel Cage:** Ensures reliable and durable roller guidance.
  • Double-Sided Rubber Seals:** Provides excellent protection against contaminants.
  • High Load Capacity:** Designed to withstand significant radial loads.
  • Versatile Application:** Used in a wide range of industrial automation and mechanical guidance systems.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
30
Outer Diameter
90
Width
35
Weight
2,15
Cage
Steel
