KRV32-X-PP RICH 12x32x14

Achieve precise tracking with the KRV32.X.PP RICH cam follower. 12x32x14mm, M12x1.5 stud.

RICH
KRV32-X-P
€21.20
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

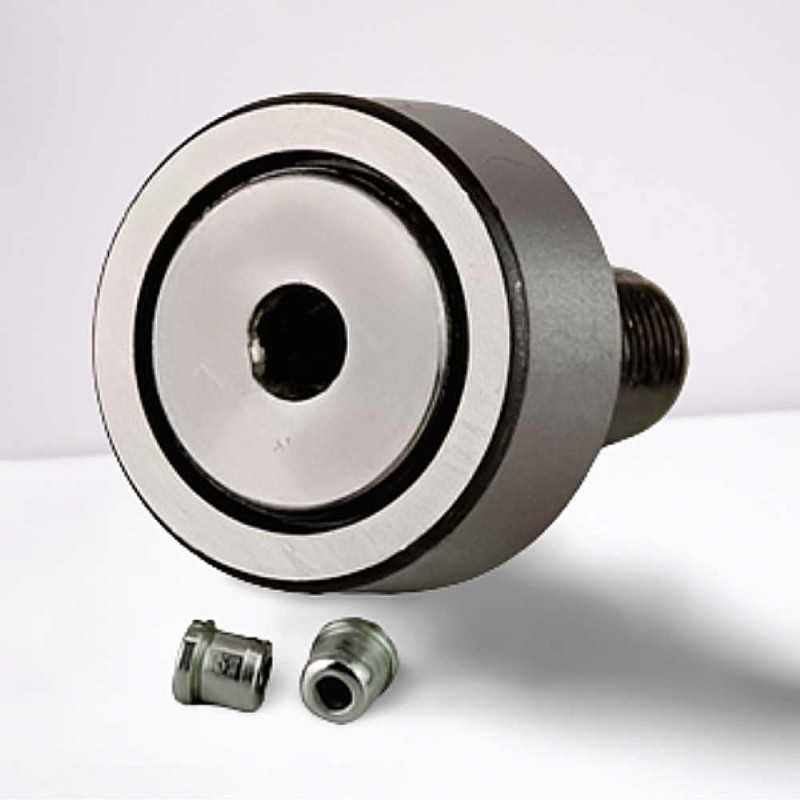

KRV32.X.PP RICH Cam Follower - Concentric Stud - 12 x 32 x 14 mm Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Concentric Stud
  • Model Designation: KRV32.X.PP
  • Brand: RICH
  • Outer Diameter (D): 32 mm
  • Width over rollers/raceways (B): 14 mm
  • Stud Diameter (d1): 12 mm
  • Overall Length (B1): 40 mm
  • Thread Size: M12x1.5
  • Outer Ring: Cylindrical (Non-Rounded)
  • Sealing: Double-sided rubber, contact (PP)
  • Cage: None (Full Complement)
  • Weight: 0.1 kg
  • Country of Manufacture: China

The KRV32.X.PP RICH cam follower with a concentric stud, meticulously manufactured by RICH in China, is engineered for precise and reliable motion in various industrial applications, particularly where a flat running surface is crucial. This robust cam follower features a 12 mm stud diameter with an M12x1.5 fine thread, a 32 mm outer diameter, and a 14 mm width over the rollers/raceways, with an overall bearing length of 40 mm. Its full complement design (no cage) maximizes the load-carrying capacity, while the cylindrical (non-crowned) outer ring provides a larger contact area for stable and even tracking. Equipped with double-sided contact rubber seals (PP) to protect against contaminants, this RICH cam follower delivers consistent and dependable performance in automation systems, conveying equipment, and indexing mechanisms. Weighing 0.1 kg, it is an ideal solution for applications requiring high load support and stable, even contact.

Key Performance Advantages:

  • Concentric Stud Design: Ensures stable and precise tracking for applications with fixed alignment needs.
  • Cylindrical Outer Ring: Provides a large, consistent contact area, optimizing load distribution on flat surfaces.
  • High Load Capacity: Full complement design without a cage allows for more rolling elements, maximizing load-carrying capability.
  • Double-Sided Contact Seals (PP): Offers robust protection against dust, dirt, and moisture, extending service life.
  • Robust Construction: Engineered for dependable performance in demanding industrial applications.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing reliable performance.
