KRV26-X-PP RICH 10x26x12

Achieve precise motion with the KRV26.X.PP RICH cam follower. 10x26x12mm, M10x1 stud, China.

RICH
KRV26XPP
€5.80
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

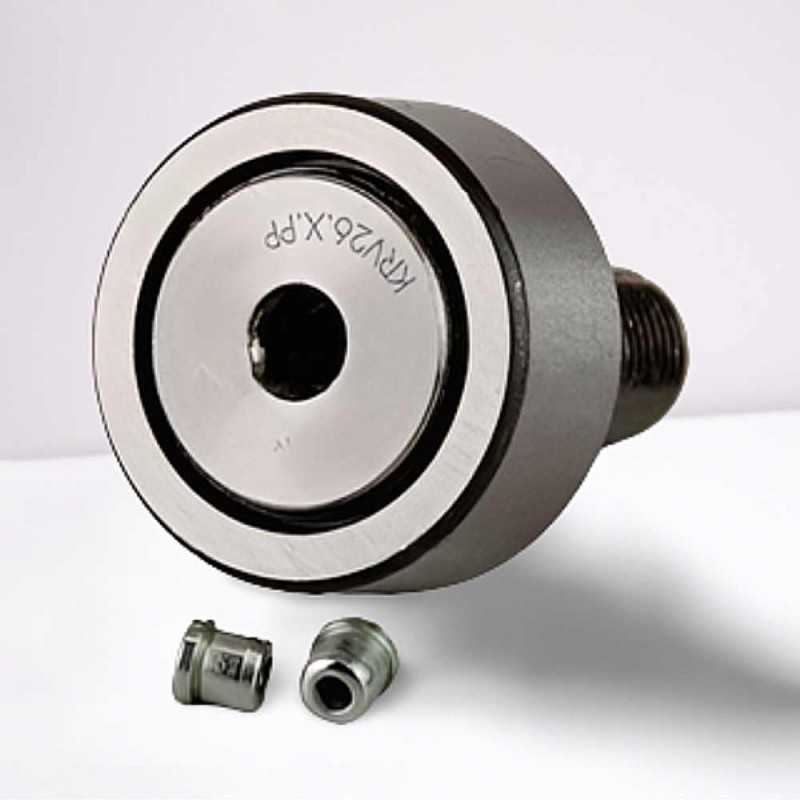

KRV26.X.PP RICH Cam Follower - Concentric Stud - 10 x 26 x 12 mm Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Concentric Stud
  • Model Designation: KRV26.X.PP
  • Brand: RICH
  • Outer Diameter (D): 26 mm
  • Width over rollers/raceways (B): 12 mm
  • Stud Diameter (d1): 10 mm
  • Overall Length (B1): 36 mm
  • Thread Size: M10x1
  • Outer Ring: Cylindrical (Non-Rounded)
  • Sealing: Double-sided rubber, contact (PP)
  • Cage: None (Full Complement)
  • Weight: 0.058 kg
  • Country of Manufacture: China

The KRV26.X.PP RICH cam follower with a concentric stud, meticulously manufactured by RICH in China, is engineered for precise and reliable motion in various industrial applications, particularly where a flat running surface is required. This robust cam follower features a 10 mm stud diameter with an M10x1 fine thread, a 26 mm outer diameter, and a 12 mm width over the rollers/raceways, with an overall bearing length of 36 mm. Its full complement design (no cage) maximizes the load-carrying capacity, while the cylindrical (non-crowned) outer ring provides a larger contact area for specific tracking requirements. Equipped with double-sided contact rubber seals (PP) to protect against contaminants, this RICH cam follower delivers consistent and dependable performance in automation systems, conveying equipment, and indexing mechanisms. Weighing 0.058 kg, it is an ideal solution for applications requiring high load support and stable, even contact.

Key Performance Advantages:

  • Concentric Stud Design: Provides stable and precise tracking for applications where fixed alignment is required.
  • Cylindrical Outer Ring: Offers a larger contact area for specific tracking surfaces, preventing point loading.
  • High Load Capacity: Full complement design with no cage allows for a greater number of rolling elements, maximizing load-carrying capability.
  • Double-Sided Contact Seals (PP): Offers effective protection against dust, dirt, and moisture, enhancing durability in harsh environments.
  • Robust Construction: Designed for reliable performance in demanding applications with significant loads.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing dependable performance.
