KRV52-PP RICH 20x52x24

Achieve robust guidance with the KRV52PPA RICH cam follower. 20x52x24mm, M20x1.5 stud.

RICH
KRV52PPA
€12.89
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

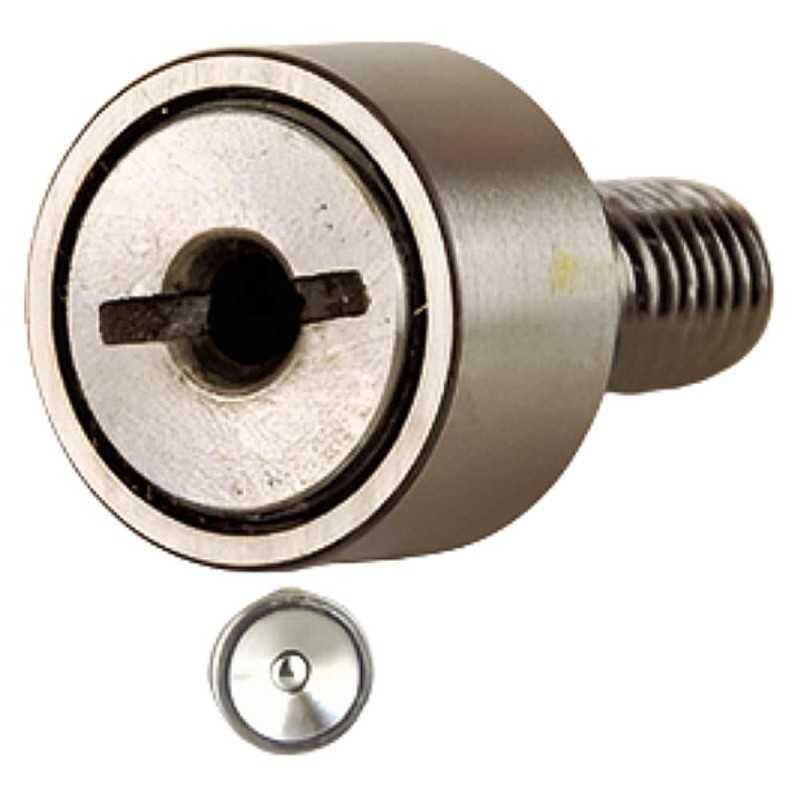

KRV52PPA RICH Cam Follower - Concentric Stud - 20 x 52 x 24 mm Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Concentric Stud
  • Model Designation: KRV52PPA
  • Brand: RICH
  • Outer Diameter (D): 52 mm
  • Width over rollers/raceways (B): 24 mm
  • Stud Diameter (d1): 20 mm
  • Overall Length (B1): 66 mm
  • Thread Size: M20x1.5
  • Outer Ring: Rounded (Crowned)
  • Sealing: Double-sided rubber, contact
  • Cage: None (Full Complement)
  • Weight: 0.511 kg
  • Country of Manufacture: China

The KRV52PPA RICH cam follower with a concentric stud, meticulously manufactured by RICH in China, is engineered for precise and reliable motion in various industrial applications. This robust cam follower features a 20 mm stud diameter with an M20x1.5 fine thread, a 52 mm outer diameter, and a 24 mm width over the rollers/raceways, with an overall bearing length of 66 mm. Its full complement design (no cage) maximizes the load-carrying capacity, while the rounded (crowned) outer ring minimizes edge stresses and ensures smooth running even with slight misalignment. Equipped with double-sided contact rubber seals to protect against contaminants, this RICH cam follower delivers consistent and dependable performance in automation systems, conveying equipment, and indexing mechanisms. Weighing 0.511 kg, it is an ideal solution for applications requiring high load support and stable operation.

Key Performance Advantages:

  • Concentric Stud Design: Ensures stable and precise tracking for applications with fixed alignment needs.
  • Rounded Outer Ring: Minimizes edge stress and promotes smoother operation, even with minor misalignments.
  • High Load Capacity: Full complement design allows for maximum rolling elements, enhancing load-carrying capability.
  • Double-Sided Contact Seals: Provides robust protection against dust, dirt, and moisture, extending service life.
  • Robust Construction: Engineered for dependable performance in demanding industrial applications.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing reliable performance.

Data sheet

Clearance
CN (Normal)
