KR40PP RICH Cam Follower, Concentric Stud - 18 x 40 x 20 mm

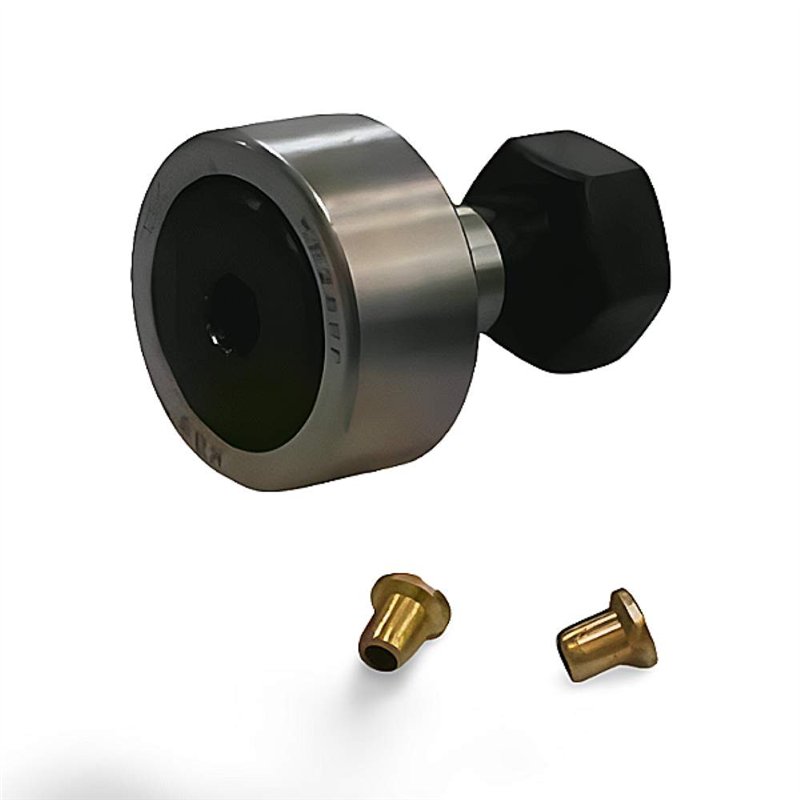

The KR40PP RICH is a cam follower with a concentric stud, designed for various motion control applications. This component has key roller dimensions of 18 mm inner diameter, 40 mm outer diameter, and a roller width of 20 mm. The bearing length (B1) is 58 mm. It features a steel cage, a rounded outer ring, and double-sided rubber contact seals. The thread size of the concentric stud is M18x1.5. It weighs approximately 0.282 kg and is made in China. Cam followers are designed to follow cams or tracks, and the concentric stud allows for easy and precise mounting. The rounded outer ring helps to reduce stress on the mating surface, and the double-sided rubber seals offer protection against contaminants.
Key Specifications:
- Component Type: Cam Follower, Concentric Stud
- Model:** KR40PP RICH
- Inner Diameter (d): 18 mm (of the integrated bearing)
- Outer Diameter (D): 40 mm (of the roller)
- Roller Width (B): 20 mm
- Bearing Length (B1): 58 mm
- Cage Material:** Steel
- Outer Ring Shape:** Rounded
- Sealing:** Double-sided Rubber, Contact
- Thread Size:** M18x1.5
- Weight:** 0.282 kg
- Country of Origin:** China
Key Features:
- Concentric Stud:** Allows for easy and direct mounting.
- Rounded Outer Ring:** Helps to reduce stress and wear on the cam or track.
- Steel Cage:** Provides durable and reliable roller guidance.
- Double-Sided Rubber Seals:** Offers protection against dust and other contaminants.
- High Load Capacity:** Designed to support significant radial loads in motion control systems.
- Versatile Application:** Used in a wide range of automation and mechanical guidance systems.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
18
Outer Diameter
40
Width
20
Weight
0,29
