KR 26 PP RICH 10x26x12
Rating:
(0)
EUR €
- EUR €
- USD $

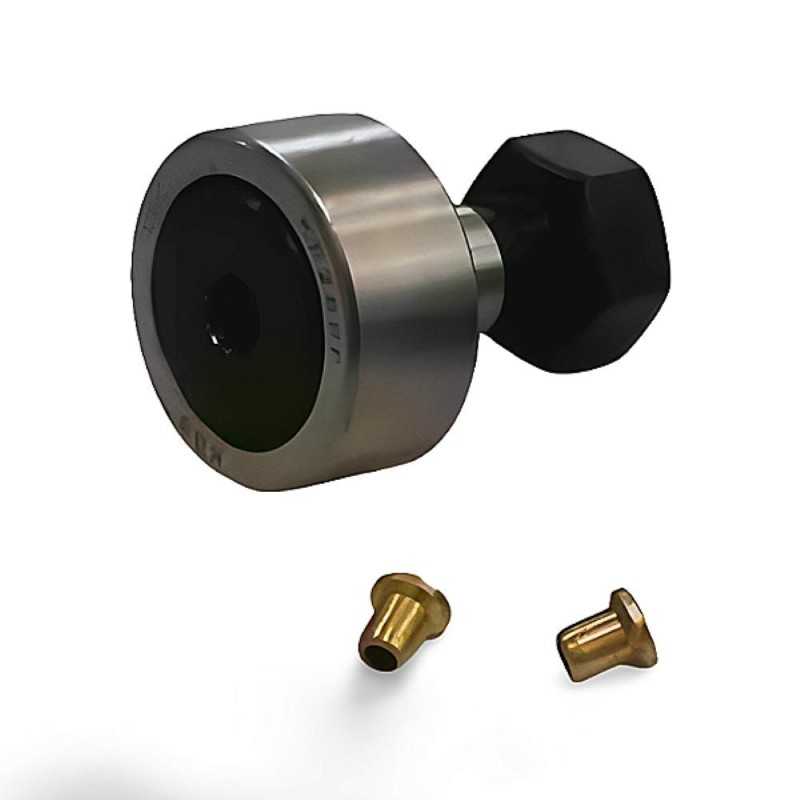

KR26PP RICH Cam Follower, Concentric Stud - 10 x 26 x 12 mm
The KR26PP RICH is a cam follower with a concentric stud, designed for various motion control applications. This component has key roller dimensions of 10 mm inner diameter, 26 mm outer diameter, and a roller width of 12 mm. The bearing length (B1) is 36 mm. It features a steel cage, a rounded outer ring, and double-sided rubber contact seals. The thread size of the concentric stud is M10x1. It weighs approximately 0.069 kg and is made in China. Cam followers are designed to follow cams or tracks, and the concentric stud allows for easy and precise mounting. The rounded outer ring is beneficial for reducing stress on the mating track. The double-sided rubber seals provide protection against contamination.
Key Specifications:
- Component Type: Cam Follower, Concentric Stud
- Model:** KR26PP RICH
- Inner Diameter (d): 10 mm (of the integrated bearing)
- Outer Diameter (D): 26 mm (of the roller)
- Roller Width (B): 12 mm
- Bearing Length (B1): 36 mm
- Cage Material:** Steel
- Outer Ring Shape:** Rounded
- Sealing:** Double-sided Rubber, Contact
- Thread Size:** M10x1
- Weight:** 0.069 kg
- Country of Origin:** China
Key Features:
- Concentric Stud:** Allows for easy and precise mounting.
- Rounded Outer Ring:** Reduces stress on the mating track or cam.
- Steel Cage:** Provides robust roller guidance.
- Double-Sided Rubber Seals:** Protects against dust and contaminants.
- High Load Capacity:** Designed to withstand significant radial loads.
- Versatile Application:** Used in various automation and motion control systems.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
10
Outer Diameter
26
Width
12
Weight
0,06
