KR 22 PP RICH 10x22x12
Rating:
(0)
EUR €
- EUR €
- USD $

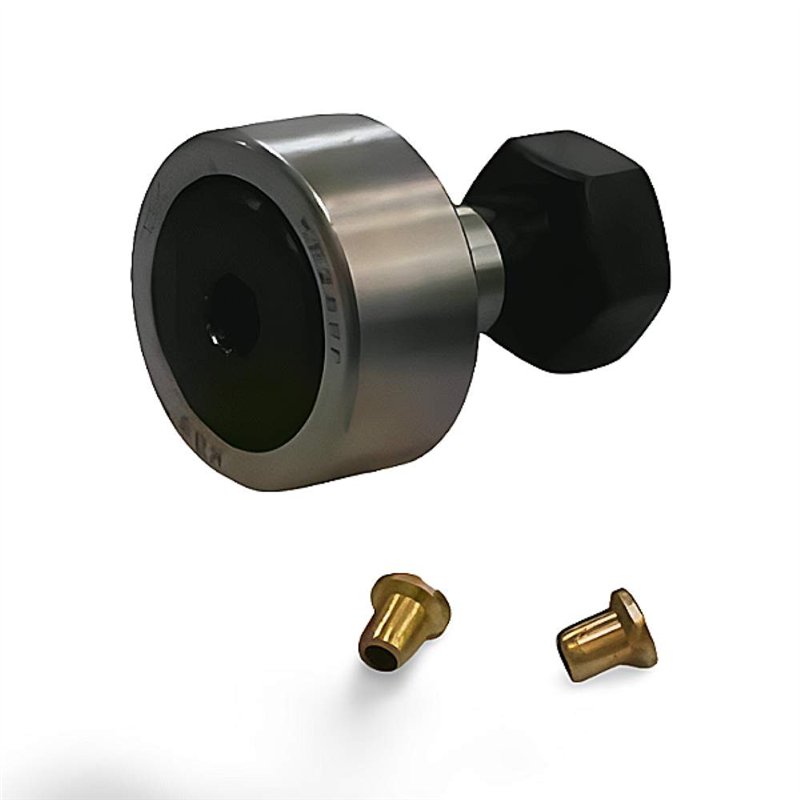

KR 22 PP RICH Cam Follower, Concentric Stud - 10 x 22 x 12 mm
The KR 22 PP RICH is a cam follower with a concentric stud, designed for various motion control applications. This component has key roller dimensions of 10 mm inner diameter, 22 mm outer diameter, and a roller width of 12 mm. The bearing length (B1) is 36 mm. It features a steel cage, a rounded outer ring, and double-sided rubber contact seals. The thread size of the concentric stud is M10x1. It weighs approximately 0.054 kg and is made in China. Similar to other cam followers, this bearing is designed to follow cams or tracks, with the concentric stud allowing for straightforward mounting. The rounded outer ring helps to minimize stress on the mating surface, and the double-sided rubber seals offer protection against contaminants.
Key Specifications:
- Component Type: Cam Follower, Concentric Stud
- Model:** KR 22 PP RICH
- Inner Diameter (d): 10 mm (of the integrated bearing)
- Outer Diameter (D): 22 mm (of the roller)
- Roller Width (B): 12 mm
- Bearing Length (B1): 36 mm
- Cage Material:** Steel
- Outer Ring Shape:** Rounded
- Sealing:** Double-sided Rubber, Contact
- Thread Size:** M10x1
- Weight:** 0.054 kg
- Country of Origin:** China
Key Features:
- Concentric Stud:** Allows for easy and direct mounting.
- Rounded Outer Ring:** Helps to reduce stress and wear on the cam or track.
- Steel Cage:** Provides durable and reliable roller guidance.
- Double-Sided Rubber Seals:** Offers protection against dust and other contaminants.
- High Load Capacity:** Designed to support significant radial loads in motion control systems.
- Versatile Application:** Used in a wide range of automation and mechanical guidance systems.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
10
Outer Diameter
22
Width
12
Weight
0,05
Cage
Steel
