KRVE35-PP RICH 16x35x18

Fine-tune precision with the KRVE35.PP RICH cam follower. 16x35x18mm, M16x1.5 stud, China.

RICH
KRVE35PP
€10.23
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

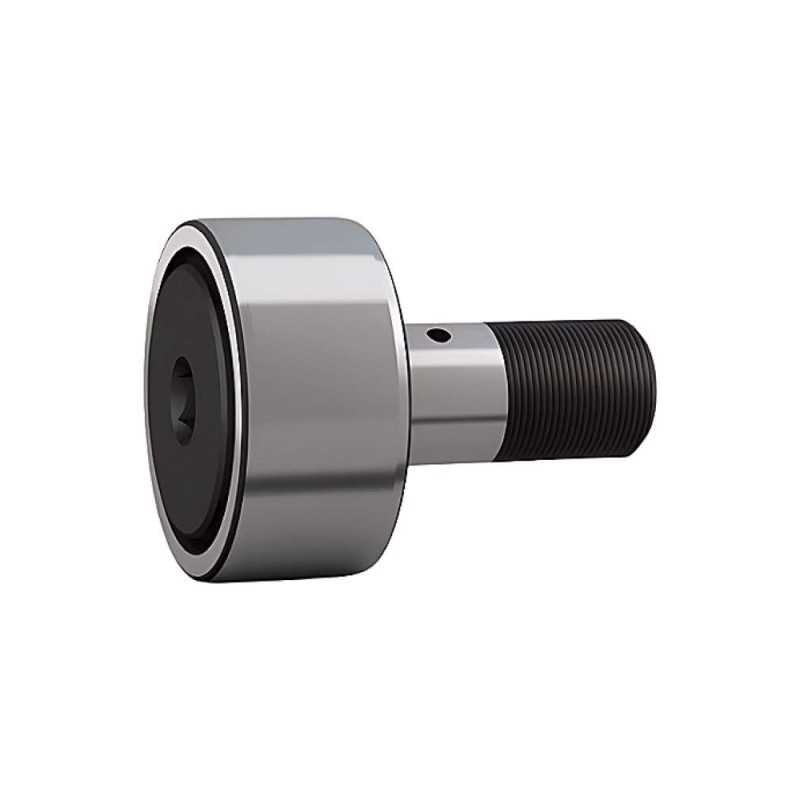

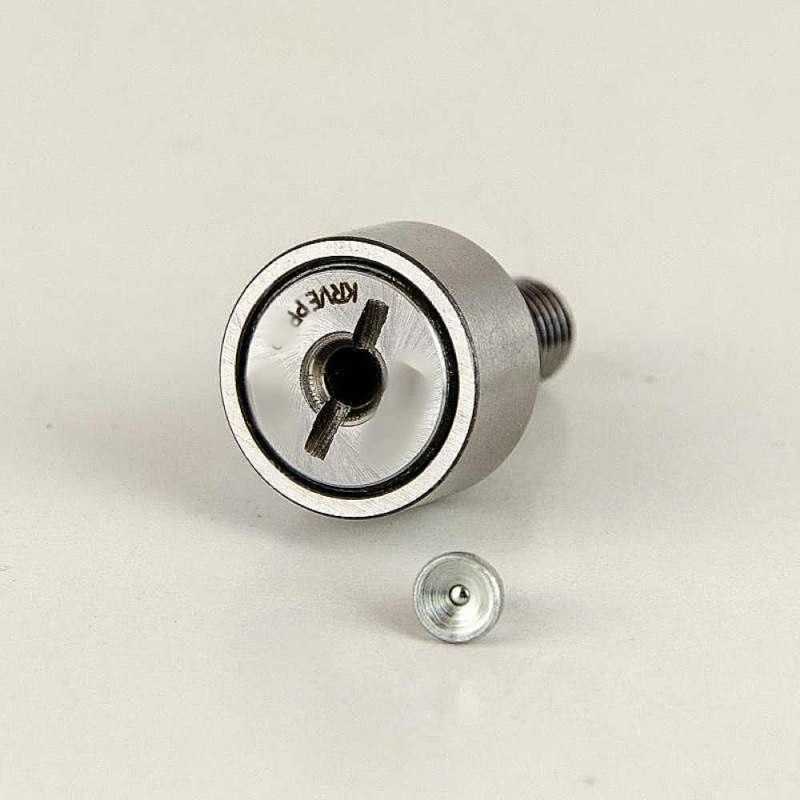

KRVE35.PP RICH Cam Follower - Eccentric Stud - 16 x 35 x 18 mm Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Eccentric Stud
  • Model Designation: KRVE35.PP
  • Brand: RICH
  • Outer Diameter (D): 35 mm
  • Width over rollers/raceways (B): 18 mm
  • Stud Diameter (d1): 16 mm
  • Overall Length (B1): 52 mm
  • Thread Size: M16x1.5
  • Outer Ring: Rounded (Crowned)
  • Sealing: Double-sided rubber, contact (PP)
  • Cage: None (Full Complement)
  • Weight: 0.187 kg
  • Country of Manufacture: China

The KRVE35.PP RICH cam follower with an eccentric stud, meticulously manufactured by RICH in China, is engineered for demanding applications requiring precise adjustment of the radial position of the outer ring. This robust cam follower features a 16 mm stud diameter with an M16x1.5 fine thread, a 35 mm outer diameter, and an 18 mm width over the rollers/raceways, with an overall bearing length of 52 mm. Its full complement design (no cage) maximizes the load-carrying capacity, while the rounded (crowned) outer ring minimizes edge stresses and ensures smooth running even with slight misalignment. Equipped with double-sided contact rubber seals (PP) to protect against contaminants, this RICH cam follower delivers highly adjustable and reliable performance in automation systems, indexing mechanisms, and conveying equipment. Weighing 0.187 kg, it is an ideal solution for systems requiring fine-tuning and high load support.

Key Performance Advantages:

  • Eccentric Stud Design: Allows for precise radial adjustment of the outer ring, enabling fine-tuning of clearance or preloading.
  • High Load Capacity: Full complement design with no cage allows for a greater number of rolling elements, maximizing load-carrying capability.
  • Rounded Outer Ring: Minimizes edge stress and provides smoother operation, especially under slight misalignment.
  • Double-Sided Contact Seals (PP): Offers effective protection against dust, dirt, and moisture, enhancing durability in harsh environments.
  • Robust Construction: Designed for reliable performance in demanding applications with significant loads.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing dependable performance.
