NF 307 M C3 RICH 35x80x21

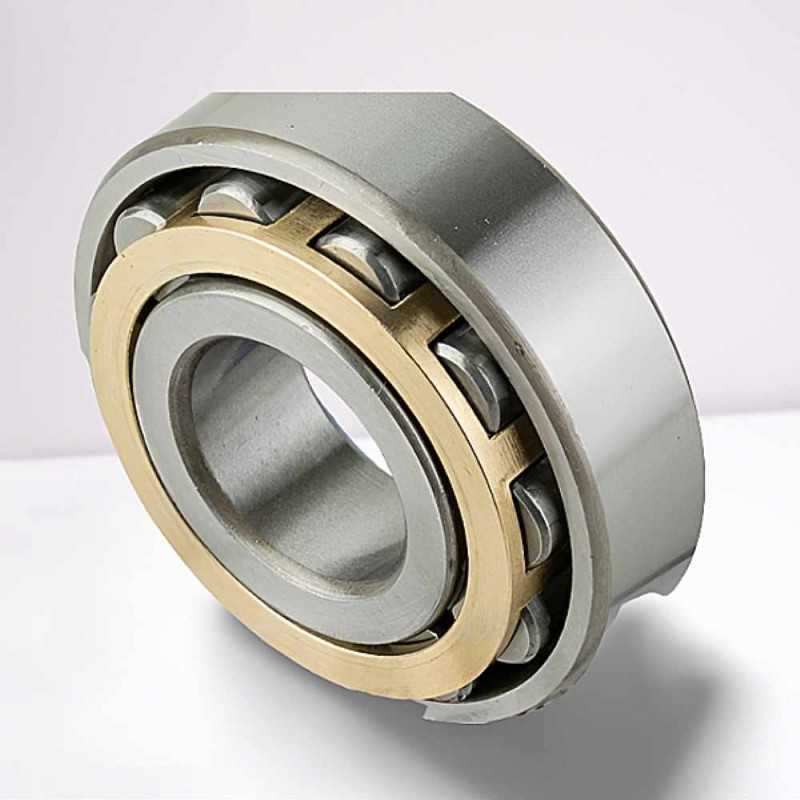

The NF 307 M C3 RICH is a single row cylindrical roller bearing with 35 x 80 x 21 mm dimensions, featuring a C3 clearance and reinforced design.

RICH
NF307MC3
€28.86
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

NF 307 M C3 RICH Single Row Cylindrical Roller Bearing - 35 x 80 x 21 mm

Technical Specifications:

  • Bearing Type: Single Row Cylindrical Roller Bearing
  • Model Designation: NF 307 M C3
  • Brand: RICH
  • Dimensions: 35 x 80 x 21 mm
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 80 mm
  • Width (B): 21 mm
  • Weight: 0.517 kg
  • Clearance: C3 (greater than normal)
  • Cage: Brass, guided by the rolling elements
  • Reinforced Execution: Yes
  • Country of Origin: China

The NF 307 M C3 RICH is a high-quality single row cylindrical roller bearing designed to handle heavy radial loads and limited axial loads in one direction. With precise dimensions of 35 mm inner diameter, 80 mm outer diameter, and a width of 21 mm, this bearing features a reinforced execution for demanding applications. The C3 clearance, greater than normal, makes it suitable for applications with temperature differences or rapid acceleration. Featuring a robust brass cage guided by the rolling elements, this bearing provides high strength and durability. Made in China, it is a reliable solution for a wide range of industrial uses.

Key Performance Advantages:

  • High Radial Load Capacity: Built to carry heavy radial loads due to its cylindrical roller design.
  • High Rigidity: Provides excellent stiffness for shafts and housings.
  • Reinforced Execution: Offers increased durability and performance under demanding conditions.
  • C3 Clearance: Accommodates thermal expansion and high-speed operation.
  • RICH Quality: A dependable and robust component for reliable operation.

Data sheet

Inner Diameter
35
Outer Diameter
80
Width
21
Weight
0,517
Roller Rows
Single Row
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Single Row Cylindrical Roller Bearing
